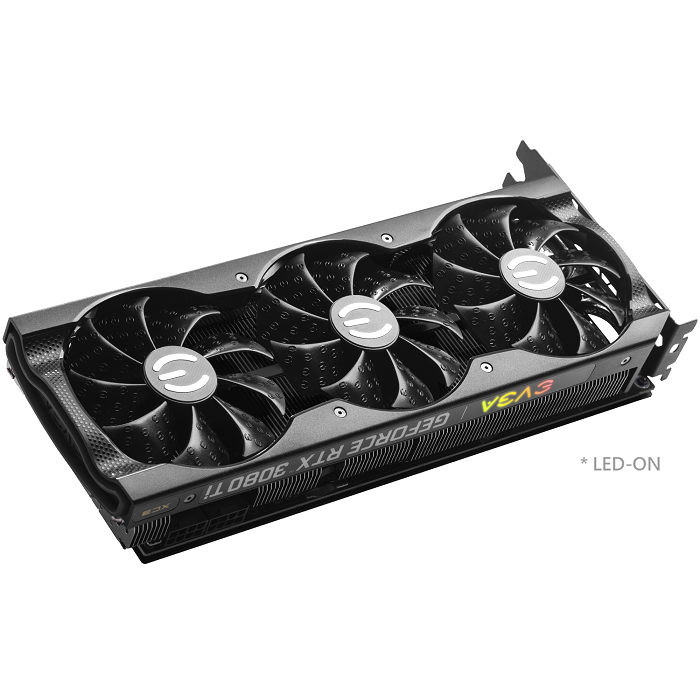

12G-P5-3953-KR | EVGA GeForce RTX 3080 Ti XC3 GAMING, 12G-P5-3953-KR, 12GB GDDR6X, iCX3 Cooling, ARGB LED, Metal Backplate
- Model: 12G-P5-3953-KR
- GPU: NVIDIA RTX 3080 Ti
- Memory: 12GB GDDR6X, 912 GB/s
- Cooling: Triple axial fans with iCX3 Cooling, 0dB below 55°C

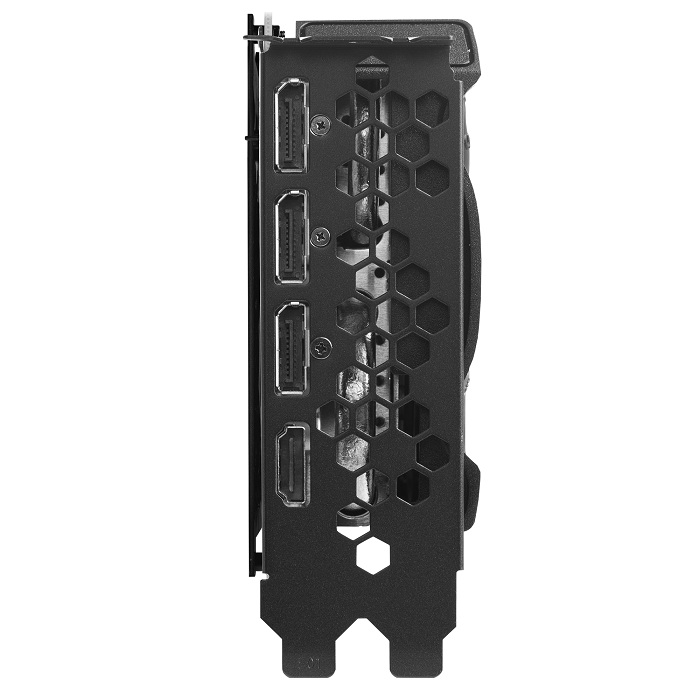

- Connectivity: 1x HDMI 2.1, 3x DisplayPort 1.4a, PCIe 4.0 x16
- Dimensions: 265 x 112 x 45 mm
- Weight: ~1.2 kg
EVGA GeForce RTX 3080 Ti XC3 GAMING, 12G-P5-3953-KR, 12GB GDDR6X, iCX3 Cooling, ARGB LED, Metal Backplate
High Performance and Ampere Architecture
The EVGA GeForce RTX 3080 Ti XC3 GAMING (12G-P5-3953-KR) is powered by NVIDIA’s Ampere architecture, featuring 10,240 CUDA cores, 320 Tensor Cores, 80 RT Cores, and a 1,665 MHz boost clock. With 12GB GDDR6X memory at 19 Gbps (912 GB/s bandwidth), it delivers ~80–100 FPS in *Cyberpunk 2077* at 4K Ultra with DLSS and ~40–50 FPS at 8K. It includes 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, DLSS, and NVENC for gaming and streaming. Users praise 4K gaming and creative workloads but note high power draw and 12GB VRAM may limit future 8K titles.
Advanced iCX3 Cooling and ARGB Design
Featuring three axial fans with iCX3 Cooling technology, the card maintains ~65–70°C under load with low noise (~35–40 dB), turning off below 55°C for 0dB operation. The 2.2-slot design (265 x 112 x 45 mm) includes an all-metal backplate and adjustable ARGB LED, customizable via EVGA Precision X1. Users commend cooling efficiency (~35°C idle, ~68°C peak) and aesthetics but note occasional coil whine and dust buildup over time.
Robust Connectivity and Power Requirements
Supporting PCIe 4.0 x16, the card offers 1x HDMI 2.1 and 3x DisplayPort 1.4a for 4K/120Hz or 8K/60Hz, supporting up to four monitors. With a 350W TDP, it requires a 750W PSU and two 8-pin PCIe connectors. Users value 4K/8K/VR support but report instability with underpowered PSUs (~650W) and occasional driver conflicts (resolved with clean installs).
EVGA GeForce RTX 3080 Ti XC3 GAMING: All Features
| Architecture | NVIDIA Ampere |
|---|---|
| CUDA Cores | 10,240 |
| Boost Clock | 1,665 MHz |
| Memory | 12GB GDDR6X, 19 Gbps, 384-bit, 912 GB/s |
| Cooling | Triple axial fans with iCX3 Cooling, 0dB below 55°C |
| Features | 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, DLSS, NVENC, G-SYNC, NVIDIA Reflex, NVIDIA Ansel, NVIDIA GameStream, NVIDIA PhysX, ARGB LED, DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6, HDCP 2.3, VR Ready |
| Connectivity | 1x HDMI 2.1, 3x DisplayPort 1.4a, PCIe 4.0 x16 |
| Warranty | 3 years |
EVGA GeForce RTX 3080 Ti XC3 GAMING: All Specifications
| Model | 12G-P5-3953-KR |
|---|---|
| GPU | NVIDIA RTX 3080 Ti (GA102-225-A1) |
| CUDA Cores | 10,240 |
| Base Clock | 1,365 MHz |
| Boost Clock | 1,665 MHz |
| Memory | 12,288 MB GDDR6X, 384-bit, 19 Gbps, 912 GB/s bandwidth |
| Texture Units (TMUs) | 320 |
| ROPs | 112 |
| Cooling | Triple axial fans with iCX3 Cooling, 0dB below 55°C |
| Interface | PCIe 4.0 x16 |
| Outputs | 1x HDMI 2.1, 3x DisplayPort 1.4a |
| Max Digital Resolution | 7680 x 4320 @ 60Hz |
| Dimensions | 265 x 112 x 45 mm (2.2 slots) |
| Power Requirements | 750W PSU, 2x 8-pin PCIe connectors, 350W TDP |
| Operating System | Windows 7/10/11 64-bit, Linux |
| Features | Ray Tracing, DLSS, NVENC, G-SYNC, NVIDIA Reflex, NVIDIA Ansel, NVIDIA GameStream, NVIDIA PhysX, ARGB LED, DirectX 12 Ultimate, Vulkan RT API, OpenGL 4.6, HDCP 2.3, VR Ready |
| Warranty | 3 years |
| Certifications | RoHS, CE |

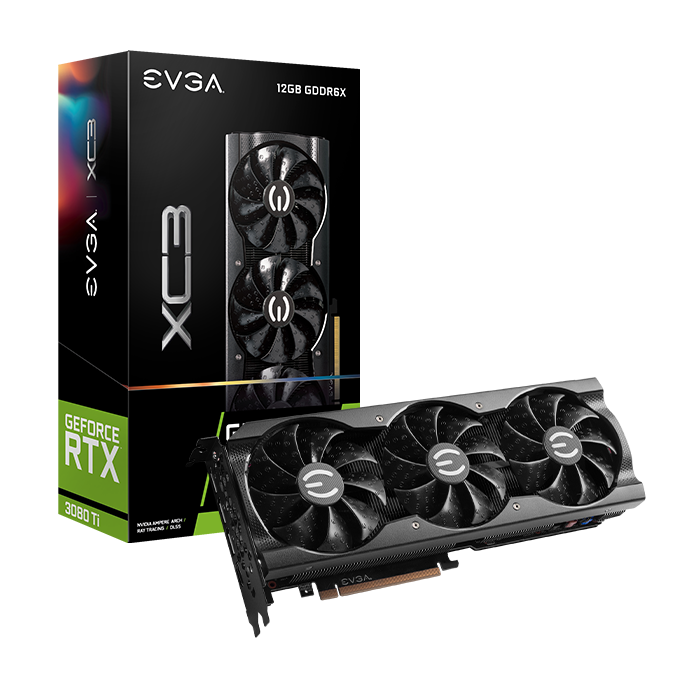

| Package Contents | Graphics card, manual |
