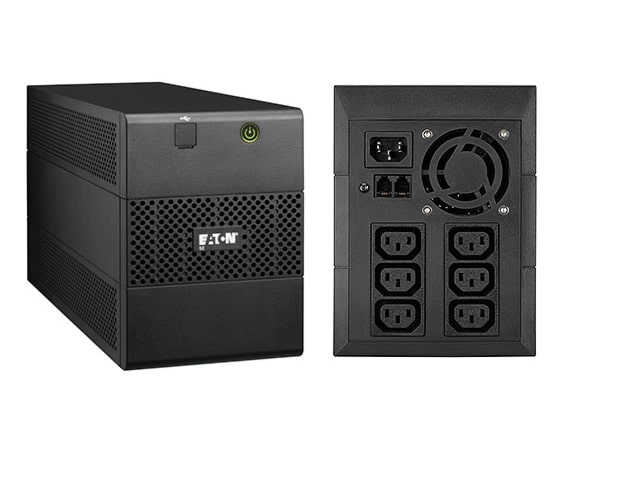

Eaton 5E UPS

Name: Eaton 5E UPS
Brand: Eaton
SKU: 12009
Availability: InStock
Rating: 4 (1 reviews)

Model: Eaton 5E UPS
Capacity: 500–2000 VA 300–1200 W
Input: IEC C14 161–284 V
Outputs: 4–6 IEC C13 (3–4 battery backup 1–2 surge only)
Battery: 12 V 7–9 Ah user-replaceable
Connectivity: USB (select models) data line protection (Ethernet xDSL)
Dimensions: 90–133 x 270–330 x 180–330 mm
Weight: 4.3–9.3 kg

Description
Reviews (1)

Eaton 5E UPS

Power and Performance

The Eaton 5E UPS series offers 500–2000 VA (300–1200 W, 0.6 power factor), ideal for PCs, routers, and home entertainment systems. Its line-interactive topology with Automatic Voltage Regulation (AVR) stabilizes voltage (161–284 V) without battery use, ensuring uptime during power fluctuations. Runtime is approximately 5–10 min at 70–80% load (model-dependent). Users praise its affordability and reliability but note limited runtime for high loads. Perfect for SOHO power protection.

Connectivity and Protection

It features 4–6 IEC C13 outlets (model-dependent, typically 3–4 battery-backed, 1–2 surge-only) with a C14 input. Data line protection (Ethernet, xDSL) complies with IEC 61643-11. USB models (e.g., 5E1100IUSB) offer HID-compliant USB for automatic shutdowns via Eaton UPS Companion software on Windows/MacOS/Linux. No EcoControl feature, unlike the Ellipse series. Users value plug-and-play simplicity but note no network card support. Ideal for basic setups.

Design and Features

Weighing 4.3–9.3 kg (model-dependent) with a compact tower design (e.g., 90 x 270 x 330 mm for 1100 VA), it suits small spaces. Features include user-replaceable sealed lead-acid batteries (12 V, 7–9 Ah), cold-start capability, and automatic battery recharge (even when off). Fanless design ensures quiet operation (approximately 25 dB). Users like the compact size but note no LCD display or rackmount options. Ideal for home and small offices.

Eaton 5E UPS: All Features

Capacity	500–2000 VA 300–1200 W
Topology	Line-interactive with AVR
Input	IEC C14 161–284 V
Outputs	4–6 IEC C13 (3–4 battery backup 1–2 surge only model-dependent)
Battery	Sealed lead-acid 12 V 7–9 Ah user-replaceable
Connectivity	HID-compliant USB (select models) data line protection (Ethernet xDSL)
Features	AVR surge protection (IEC 61643-11) cold-start battery recharge when off
Warranty	2 years (extendable with service plans)

Eaton 5E UPS: All Specifications

Model	Eaton 5E UPS (500I 650I 650IUSB 850IUSB 1100IUSB 1500IUSB 2000IUSB)
Catalog Numbers	5E500I 5E650I 5E650IUSB 5E850IUSB 5E1100IUSB 5E1500IUSB 5E2000IUSB
Capacity	500 VA 300 W 650 VA 360 W 850 VA 480 W 1100 VA 660 W 1500 VA 900 W 2000 VA 1200 W
Power Factor	0.6
Topology	Line-interactive with Automatic Voltage Regulation (AVR)
Input	IEC C14 161–284 V (230 V default)
Outputs	500–850 VA: (4) IEC C13 (3 battery backup 1 surge only); 1100–2000 VA: (6) IEC C13 (4 battery backup 2 surge only)
Battery	Sealed lead-acid 12 V 7–9 Ah (1–2 batteries model-dependent) user-replaceable
Battery Management	Automatic battery recharge (even when off) deep-discharge protection cold-start capable
Runtime	Approximately 5–10 min at 70–80% load (model-dependent see Eaton website for runtime graph)
Extended Battery Capability	Not supported
Connectivity	HID-compliant USB (select models: 650IUSB 850IUSB 1100IUSB 1500IUSB 2000IUSB) data line protection (Ethernet xDSL)
Surge Protection	IEC 61643-11 compliant
Efficiency	Approximately 98%
Dimensions	500–850 VA: 90 x 270 x 330 mm; 1100–2000 VA: 133 x 330 x 180 mm
Weight	4.3–9.3 kg (model-dependent)
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 CE EAC
Warranty	2 years (extendable with service plans)
Accessories	Eaton Battery+ replacement
Package Contents	UPS USB cable (USB models) quick start guide safety instructions
