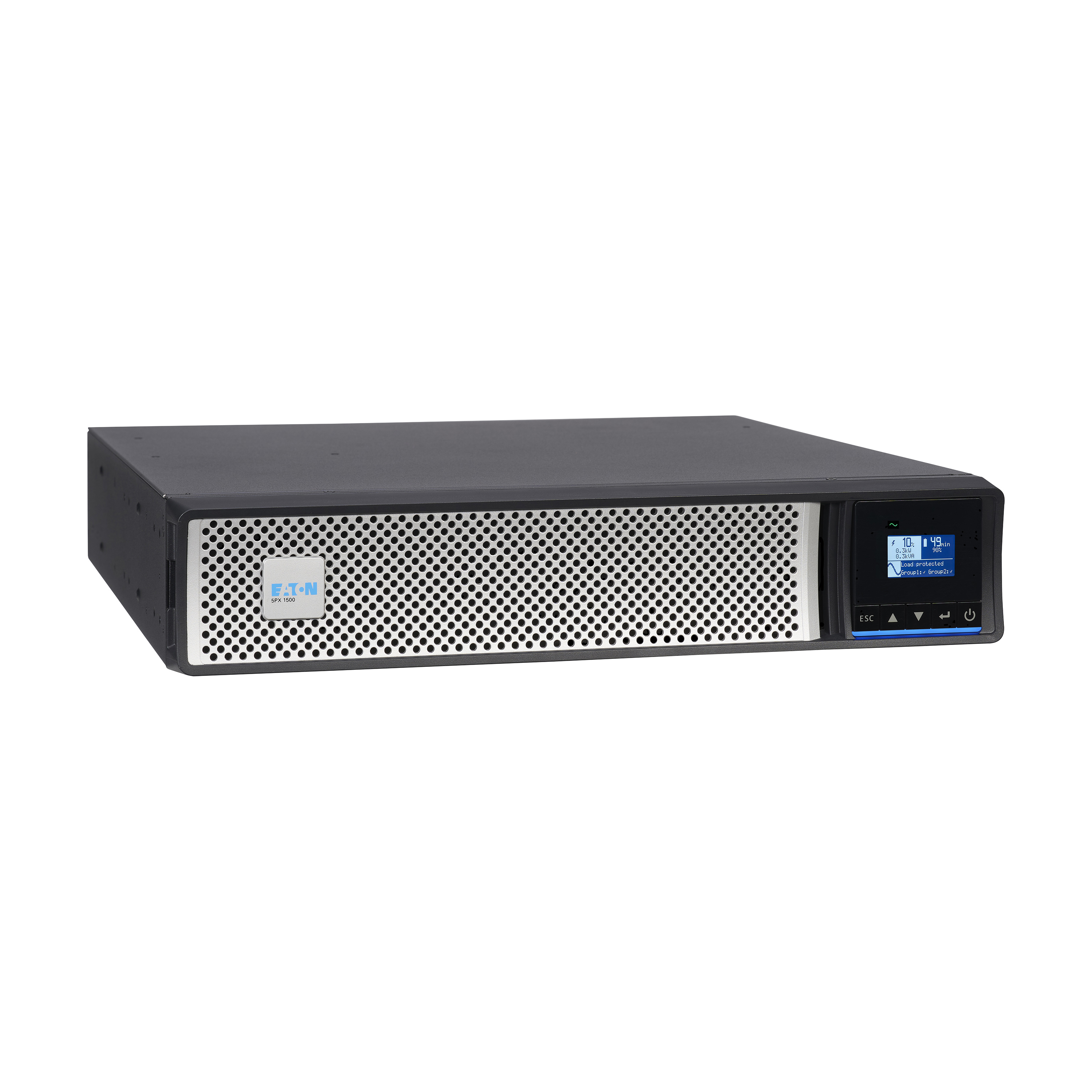

5PX | Eaton 5PX Gen2 UPS

Name: 5PX | Eaton 5PX Gen2 UPS
Brand: Eaton
SKU: 12011
Availability: InStock
Rating: 4 (1 reviews)

Model: Eaton 5PX Gen2 UPS (1000–3000 VA)
Capacity: 1000–3000 VA/W
Input: IEC C14/C20, 150–294 V
Outputs: 8–10 IEC C13/C19, 2 load segments
Battery: 12 V/7–9 Ah, hot-swappable, up to 4 EBMs
Connectivity: USB, RS232, optional NETWORK-M2/M3
Dimensions: 2U/3U, 448–603 mm depth
Weight: 19.8–31 kg

Description
Reviews (1)

Eaton 5PX Gen2 UPS

Power and Performance

The Eaton 5PX Gen2 UPS offers power ratings from 1000–3000 VA/W (unity power factor, VA=W), delivering 11% more power than competitors. Its line-interactive topology with AVR stabilizes voltage (150–294 V) for servers and networking equipment. Runtime is extended by ~25% on 1.5/2 kVA models (~10–12 min at 70% load) with up to 4 optional EBMs. Users praise its efficiency (>98%) but note limited runtime without EBMs. Ideal for small data centers and edge IT.

Connectivity and Protection

It includes 8–10 IEC C13/C19 outlets (model-dependent, 2 load segments) with surge protection (IEC 61643-11). The optional Gigabit Network Card (NETWORK-M2/M3) offers secure HTTPS/SNMP v1/v3 monitoring and dual cybersecurity certifications (UL 2900-1, IEC 62443-4-2). USB and RS232 ports enable local management via Eaton’s Intelligent Power Manager. Users value remote firmware updates but note the network card’s added cost. Ideal for secure IT environments.

Design and Features

Available in 2U/3U rack/tower formats (448–603 mm depth), it weighs 19.8–31 kg. The graphical LCD simplifies setup with a configuration wizard. Features include hot-swappable batteries (12V, 7–9 Ah), ABM technology (extends battery life ~50%), and quiet operation (~40 dB, fans off below 30% load). Users appreciate the compact design but note the weight for rack setups. Ideal for space-constrained IT closets.

Eaton 5PX Gen2 UPS: All Features

Capacity	1000–3000 VA/W
Topology	Line-interactive with AVR
Input	IEC C14 (1000–1500 VA), C20 (2000–3000 VA), 150–294 V
Outputs	8–10 IEC C13/C19 (model-dependent), 2 load segments
Battery	Sealed lead-acid, 12 V/7–9 Ah, hot-swappable
Connectivity	USB, RS232, optional Gigabit Network Card (NETWORK-M2/M3)
Features	LCD display, EcoControl, AVR, surge protection, load segment control, ABM technology, Energy Star 2.0
Warranty	3 years (extendable to 4–6 years with Warranty+1/+3)

Eaton 5PX Gen2 UPS: All Specifications

Model	5PX1000RTG2, 5PX1500RTG2, 5PX2000RTG2, 5PX3000RTG2, Netpack variants
Capacity	1000 VA/1000 W, 1500 VA/1500 W, 2000 VA/2000 W, 3000 VA/3000 W
Power Factor	1.0 (VA=W)
Topology	Line-interactive with Automatic Voltage Regulation (AVR)
Input	IEC C14 (1000–1500 VA), IEC C20 (2000–3000 VA), 150–294 V (230V default)
Outputs	1000–1500 VA: (8) IEC C13; 2000 VA: (8) C13, (1) C19; 3000 VA: (8) C13, (2) C19, 2 load segments
Battery	Sealed lead-acid, 12 V/7–9 Ah (model-dependent), hot-swappable, up to 4 EBMs
Battery Management	ABM technology (3-stage charging), automatic battery test, deep-discharge protection
Runtime	~10–12 min at 70% load (varies by model, see Eaton runtime graph)
Connectivity	USB, RS232, Relay Out, RPO/ROO, optional Gigabit Network Card (NETWORK-M2/M3)
Surge Protection	IEC 61643-11 compliant
Display	Graphical LCD with configuration wizard
EcoControl	Up to 20% energy savings via load segment control
Dimensions	1000–1500 VA: 86.2 x 441 x 448 mm (2U); 2000–3000 VA: 86.2 x 441 x 603 mm (2U/3U)
Weight	19.8–31 kg (model-dependent)
Certifications	CE, CB, RoHS, Energy Star 2.0, UL 2900-1, IEC 62443-4-2 (Netpack models)
Warranty	3 years (extendable with Warranty+1/+3 options)
Software	Eaton Intelligent Power Manager (requires network card)
Accessories	EBMs, rail kits, pedestals, HotSwap MBP bypass
Package Contents	UPS, USB cable, RS232 cable, rail kits, pedestals, quick start guide
