EB-L510U | Epson EB-L510U WUXGA 3LCD Laser Projector
- Model: EB-L510U (V11H903053/V11H903056)
- Projection System: 3LCD, 0.67" panel with C2Fine™ (D10)
- Brightness: 5,000 lumens (color and white)
- Resolution: WUXGA (1920x1200)

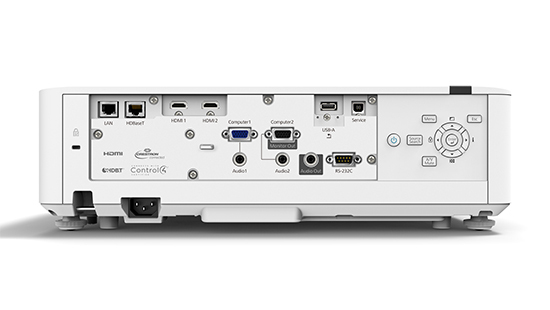

- Connectivity: HDBaseT, 2x HDMI, VGA in/out, USB-A/B, RJ-45, RS-232C, optional wireless LAN
- Dimensions: 440 x 304 x 120 mm
- Weight: 8.7 kg
Epson EB-L510U WUXGA 3LCD Laser Projector
High Brightness and WUXGA Resolution
The Epson EB-L510U is a 3LCD laser projector delivering 5,000 lumens of color and white brightness with WUXGA (1920x1200) resolution, supporting Full HD 1080p. Its 3LCD technology and 2,500,000:1 dynamic contrast ratio ensure vibrant, sharp images for education and business settings, such as conference rooms and lecture halls. The projector supports images up to 500" with excellent color accuracy and no rainbow effect. Users praise its brightness and clarity but note it may not fully resolve 4K content without pixel shifting.
Flexible Installation and Connectivity
With a 1.6x optical zoom (1.35–2.2:1 throw ratio), ±50% vertical and ±20% horizontal lens shift, and 360° installation flexibility, the EB-L510U adapts to various setups. It supports HDBaseT for uncompressed Full HD video/audio over 100 m via Cat5e/6, 2x HDMI, VGA in/out, and optional wireless LAN (module sold separately) with enterprise-level security. Features like horizontal/vertical keystone, arc correction, and Quick Corner simplify alignment. Users value the installation ease but note the optional wireless module (~$100) adds cost.
Long-Lasting Laser and Low Maintenance
The laser diode light source lasts up to 20,000 hours (Normal/Quiet) or 30,000 hours (Extended), offering virtually maintenance-free operation for the optical engine. Constant Brightness Mode allows 1% increment adjustments to maximize runtime. The projector operates at 31 dB (Normal) or lower in Quiet/Extended modes, with a compact 8.7 kg design. Users appreciate the low maintenance but note the need for proper ventilation to prevent overheating.
Epson EB-L510U WUXGA 3LCD Laser Projector: All Features
| Projection Technology | 3LCD, 0.67" panel with C2Fine™ (D10) |
|---|---|
| Brightness | 5,000 lumens (color and white), ~3,500 lumens (Constant Brightness Mode) |
| Resolution | WUXGA (1920x1200), 16:10 |
| Contrast Ratio | 2,500,000:1 (Dynamic), 500:1 (Native) |
| Picture Modes | Presentation, Dynamic, sRGB, Multi-Projection |
| Lamp Life | 20,000 hours (Normal/Quiet), 30,000 hours (Extended) |
| Warranty | 3 years (projector), 3 years or 12,000 hours (light source, varies by region) |
Epson EB-L510U WUXGA 3LCD Laser Projector: All Specifications
| Projection System | 3LCD, 0.67" panel with C2Fine™ (D10) |
|---|---|
| Brightness | 5,000 lumens (color and white), ~3,500 lumens (Constant Brightness Mode) |
| Resolution | WUXGA (1920x1200), 2,304,000 pixels |
| Supported Resolution | VGA (640x480) to WUXGA (1920x1200) |
| Contrast Ratio | 2,500,000:1 (Dynamic), 500:1 (Native) |
| Color Processing | 10-bit, up to 1.07 billion colors |
| Light Source | Laser Diode |
| Light Source Life | 20,000 hours (Normal/Quiet), 30,000 hours (Extended) |
| Throw Ratio | 1.35–2.2:1 |
| Zoom Ratio | 1.6x (optical) |
| Lens | F=1.5–1.7, f=20–31.8 mm, manual zoom/focus |
| Lens Shift | Manual, ±50% vertical, ±20% horizontal |
| Projection Size | 50"–500" |
| Projection Distance | 2.33–3.78 m (80" screen) |
| Connectivity | HDBaseT, 2x HDMI, VGA in/out, USB-A/B, RJ-45, RS-232C, 2x stereo mini in, 1x stereo mini out, optional wireless LAN |
| Audio | No built-in speaker (external audio required) |
| Noise Level | 31 dB (Normal), 23 dB (Quiet/Extended) |
| Operating Temperature | 0°C to 45°C |
| Dimensions (WxDxH) | 440 x 304 x 120 mm (excluding feet) |
| Weight | 8.7 kg |
| System Compatibility | Windows, macOS, iOS, Android (via iProjection with optional wireless module) |
| Security | Kensington lock, security bar, password protection, wireless LAN security |
| Certifications | CE, FCC, RoHS |
| Warranty | 3 years (projector), 3 years or 12,000 hours (light source, varies by region) |
| Package Contents | Projector, VGA cable, power cable, remote with batteries, cable cover, quick start guide, user manual CD |
