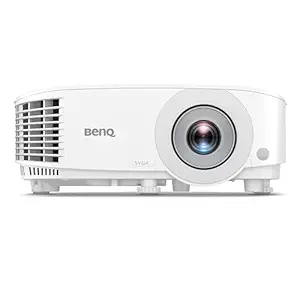

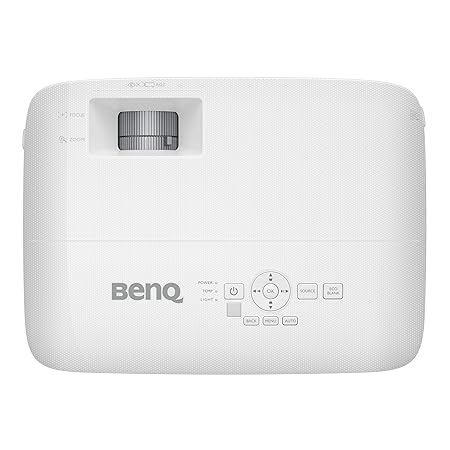

MS560 | BenQ MS560 SVGA 4000 Lumen Projector

Name: MS560 | BenQ MS560 SVGA 4000 Lumen Projector
Brand: BenQ
SKU: 11540
Availability: InStock
Rating: 4 (1 reviews)

Model: MS560
Projection System: DLP, Single 0.55" DMD
Brightness: 4000 ANSI lumens
Resolution: SVGA (800x600)
Connectivity: 2x HDMI, VGA in/out, S-Video, composite, USB Type-A, USB Mini-B
Dimensions: 296 x 221 x 120 mm
Weight: 2.3 kg

Description
Reviews (1)

BenQ MS560 SVGA 4000 Lumen Projector

High Brightness and Clarity

The BenQ MS560 is an SVGA (800x600) projector with DLP technology, delivering 4000 ANSI lumens of brightness and a 20,000:1 contrast ratio for clear, vivid images in well-lit environments. Its high-quality glass lenses minimize chromatic aberration, ensuring sharp, long-term image quality. With modes like Presentation, Infographic, and Data Review, it optimizes visuals for text, charts, and vibrant colors, ideal for classrooms and meeting rooms. Supports up to WUXGA (1920x1200) resolution for detailed content.

Flexible Connectivity and Setup

Featuring dual HDMI (one with faster transmission), VGA in/out, S-Video, composite, USB Type-A (1.5A for charging/dongle), and USB Mini-B, the MS560 ensures versatile connectivity. Auto Vertical Keystone (±40°) and triple adjustment feet, including a retractable foot, simplify setup for distortion-free images. The 1.1x zoom and 1.96–2.15:1 throw ratio support screen sizes from 60" to 150". Users appreciate the plug-and-play HDMI auto-on but note the lack of built-in wireless streaming.

Energy Efficiency and Durability

The MS560’s SmartEco Mode reduces lamp power by up to 70%, extending lamp life to 15,000 hours, while Eco Blank Mode dims the lamp by 70% during inactivity. An anti-dust sensor minimizes maintenance, and Auto Power Off shuts down after 20 minutes of no signal. A Kensington lock deters theft. The 203W lamp and 10W speaker suit small rooms, but users note SVGA resolution limits Full HD video quality, making it better for presentations than home entertainment.

BenQ MS560 SVGA Projector: All Features

Projection Technology	DLP, Single 0.55" DMD
Brightness	4000 ANSI lumens
Resolution	SVGA (800x600), 4:3 aspect ratio
Contrast Ratio	20,000:1
Connectivity	2x HDMI, VGA in/out, S-Video, composite, USB Type-A (1.5A), USB Mini-B, RS-232
Features	Auto Vertical Keystone, SmartEco Mode, Eco Blank, Data Review Mode, Presentation Mode, Infographic Mode, 3D support, 10W speaker
Lamp Life	6000 hours (Normal), 10,000 hours (ECO/SmartEco), 15,000 hours (LampSave)
Compatibility	VGA (640x480) to WUXGA (1920x1200)
Warranty	2-year projector, 1-year or 1000 hours (lamp, whichever comes first)

BenQ MS560 SVGA Projector: All Specifications

Model	MS560
Projection System	DLP, Single 0.55" DMD
Brightness	4000 ANSI lumens
Resolution	SVGA (800x600), 4:3 aspect ratio
Supported Resolution	VGA (640x480) to WUXGA (1920x1200)
Contrast Ratio	20,000:1
Light Source	203W lamp
Lamp Life	6000 hours (Normal), 10,000 hours (ECO/SmartEco), 15,000 hours (LampSave)
Throw Ratio	1.96–2.15:1
Zoom Ratio	1.1x
Lens	F/# = 2.56–2.68, f = 22–24.1mm
Projection Offset	110% (full-height)
Screen Size	60"–150" (1.64–4.87 m)
Keystone Correction	Auto Vertical: ±40°
Connectivity	2x HDMI, VGA in/out, S-Video, composite, USB Type-A (1.5A), USB Mini-B, RS-232
Audio	10W mono speaker
Noise Level	34 dB (Normal), 29 dB (ECO)
Power Consumption	280W (Max), 260W (Normal), 215W (ECO)
Operating Temperature	0°C to 40°C
Non-Operating Temperature	-20°C to 60°C
Dimensions (WxDxH)	296 x 221 x 120 mm
Weight	2.3 kg
System Compatibility	VGA (640x480) to WUXGA (1920x1200)
Picture Modes	3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
Certifications	Not specified
Warranty	2-year projector, 1-year or 1000 hours (lamp, whichever comes first)
Package Contents	Projector, power cord, VGA cable, remote control with batteries, user manual CD, quick start guide, warranty card
