• Epson EB-570-XGA Projector

EB-570-XGA | Epson EB-570-XGA Projector


  • Model: EB-570 (V11H605041/V11H605040)
  • Projection System: 3LCD, 0.55" panel with MLA
  • Brightness: 2,700 lumens (color and white)
  • Resolution: XGA (1024x768)
  • Connectivity: HDMI x2 (1x MHL), VGA, USB-A/B, Ethernet, S-Video, Composite, optional wireless LAN
  • Dimensions: 367 x 375 x 155 mm
  • Weight: 5.3 kg

Epson EB-570-XGA Projector

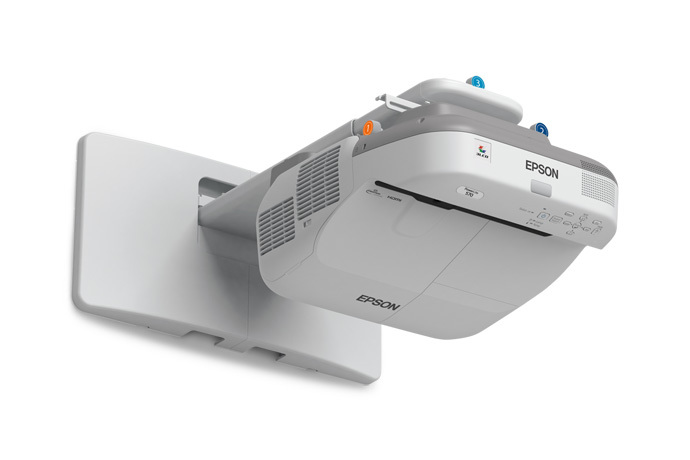

Epson EB-570 Projector

Ultra Short Throw with Bright XGA Projection

The Epson EB-570 is a 3LCD ultra-short-throw projector delivering 2,700 lumens of color and white brightness with XGA (1024x768) resolution, projecting up to 93" from just 12" away. Its 10,000:1 contrast ratio and 3LCD technology ensure vibrant, sharp images, even in well-lit classrooms or small meeting rooms. Ideal for education, it minimizes shadows and glare. Users praise its brightness and clarity but note limited resolution for detailed content.

Collaborative Features and Network Connectivity

With optional wireless LAN (802.11b/g/n) and Moderator software, the EB-570 supports multi-PC projection for up to 50 devices, enabling collaborative content sharing. It includes 2x HDMI (1x MHL), VGA, USB, Ethernet, and EasyMP software for remote management. The iProjection app allows wireless projection from iOS/Android devices. Users value connectivity but report setup challenges and occasional wireless lag.

Epson EB-570 Projector
Epson EB-570 Projector

Easy Setup and Long-Lasting Reliability

The EB-570 features manual keystone correction (±3° vertical/horizontal) and a 1.35x digital zoom for quick alignment. Its 215W UHE lamp lasts up to 5,000 hours (Normal) or 10,000 hours (ECO), with a 16W speaker for audio. The 5.3 kg design includes a wall mount for flexible installation. Users appreciate reliability but note alignment time and lamp replacement costs (~$100).

Epson EB-570 XGA 3LCD Projector: All Features

Projection Technology 3LCD, RGB liquid crystal shutter, 0.55" panel with MLA (D8)
Brightness 2,700 lumens (color and white), 1,500 lumens (ECO)
Resolution XGA (1024x768)
Contrast Ratio 10,000:1 (dynamic)
Picture Modes Dynamic, Presentation, Theatre, sRGB, Blackboard, Whiteboard
Lamp Life 5,000 hours (Normal), 10,000 hours (ECO)
Interactivity Multi-PC projection, Moderator software, iProjection app, MHL, USB display
Warranty 2 years (projector), 1 year or 1,000 hours (lamp, varies by region)

Epson EB-570 XGA 3LCD Projector: All Specifications

Projection System 3LCD, 0.55" poly-silicon TFT with Micro Lens Array (D8)
Brightness 2,700 lumens (color and white), 1,500 lumens (ECO)
Resolution XGA (1024x768)
Supported Resolution VGA (640x480) to SXGA+ (1400x1050, resized)
Contrast Ratio 10,000:1 (dynamic)
Color Processing 10-bit
Light Source 215W UHE lamp (E-TORL, V13H010L79)
Lamp Life 5,000 hours (Normal), 10,000 hours (ECO)
Throw Ratio 0.31:1 (ultra-short-throw)
Zoom Ratio 1–1.35x (digital)
Lens F=1.80, f=3.71 mm, manual focus
Audio 16W stereo speaker
Noise Level 35 dB (Normal), 30 dB (ECO)
Power Consumption 333W (Normal), 255W (ECO), 0.33W (Standby)
Operating Temperature 5°C to 40°C
Dimensions (WxDxH) 367 x 375 x 155 mm (excluding feet)
Weight 5.3 kg
System Compatibility Windows, macOS, iOS, Android (via iProjection)
Security PIN code, security bar, optional wireless LAN security
Certifications CE, FCC, RoHS
Warranty 3 years (projector, varies by region), 1 year or 1000 hours (lamp)
Package Contents Projector, power cable, remote control with batteries, USB cable, CD manual, quick start guide, wall mount
