0TS1648 | Ultrastar DC SA210

Model: 0TS1648 (HBS3A1912A7E6B1)
Capacity: 120GB
Interface: SATA 6Gb/s
Sequential Read/Write: Up to 510 MB/s / 475 MB/s
Endurance: 0.1 DWPD
Dimensions: 100.2 x 69.85 x 7 mm
Weight: ~55 g

Description
Reviews (1)

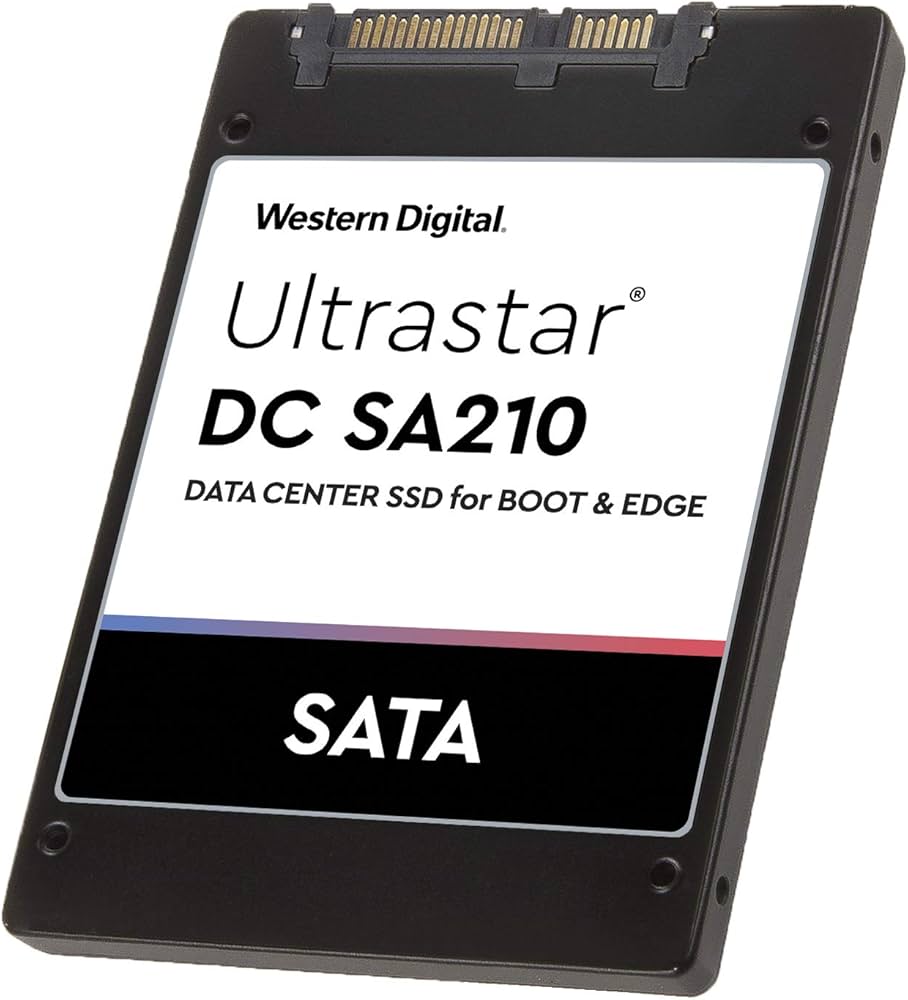

Ultrastar DC SA210

Optimized for Enterprise Boot

The Western Digital Ultrastar DC SA210 (0TS1648) is a 120GB SATA 6Gb/s SSD purpose-built for enterprise boot and edge applications, offering up to 510 MB/s read and 475 MB/s write speeds, leveraging 64-layer 3D NAND for reliable performance in read-intensive environments.

Robust Data Protection

Features end-to-end data protection and LDPC error correction for enhanced reliability, with TCG OPAL 2.01 self-encryption and Instant Secure Erase to protect data and simplify drive redeployment, making it ideal for secure server environments.

Cost-Effective and Durable

Designed to minimize data loss from power failures without costly hold-up capacitors, the SA210 offers a 2M-hour MTBF and a 5-year warranty, providing a cost-optimized solution for edge computing and server boot drives.

Western Digital Ultrastar DC SA210 0TS1648: All Features

Capacity	120GB
Interface	SATA 6Gb/s
Performance	Up to 510 MB/s read, 475 MB/s write; 64K/5K IOPS (4KB read/write)
Endurance	0.1 DWPD (Drive Writes Per Day)
Security	TCG OPAL 2.01 self-encryption, Instant Secure Erase

Western Digital Ultrastar DC SA210 0TS1648: All Specifications

Capacity	120GB (also available in 240GB, 480GB, 960GB, 1.92TB)
Interface	SATA 6Gb/s
Form Factor	2.5-inch, 7mm
NAND Type	Western Digital 64-layer 3D TLC NAND
Sequential Read Performance	Up to 510 MB/s
Sequential Write Performance	Up to 475 MB/s
Random Read/Write IOPS	Up to 64,000/5,000 (4KB)
Endurance	0.1 DWPD (Drive Writes Per Day)
MTBF	2 million hours
Security	TCG OPAL 2.01 self-encryption, Instant Secure Erase, LDPC error correction
Power Consumption	Active: ~3W; Idle: ~0.7W
Operating Temperature	0°C to 70°C
Non-Operating Temperature	-40°C to 85°C
Dimensions (LxWxH)	100.2 x 69.85 x 7 mm
Weight	~55 g
System Compatibility	Windows Server 2012/2016, enterprise Linux distributions
Certifications	FCC, CE, BSMI, VCCI, RCM, RoHS
Warranty	5-year limited warranty
Package Contents	SSD, quick start guide
