EB-W05 | EPSON EB-W05 WXGA projector

Name: EB-W05 | EPSON EB-W05 WXGA projector
Brand: Epson
SKU: 11563
Availability: InStock
Rating: 4 (1 reviews)

Model: EB-W05 (V11H840041/V11H840052)
Projection System: 3LCD, 0.59-inch panel with MLA (D9)
Brightness: 3300 lumens (color and white)
Resolution: WXGA (1280x800)
Connectivity: HDMI, VGA in, USB Type A/B, composite, optional Wi-Fi
Dimensions: 302 x 237 x 82 mm
Weight: 2.5 kg

Description
Reviews (1)

EPSON EB-W05 WXGA projector

Vivid and Bright Image Quality

The Epson EB-W05 is a WXGA (1280x800) projector with 3LCD technology, delivering 3300 lumens of color and white brightness and a 15,000:1 contrast ratio for sharp, vibrant images in well-lit rooms. Its 16:10 aspect ratio supports HD-ready content, projecting up to 320" for home cinema or business presentations. The 3LCD system ensures up to three times brighter colors than 1-chip DLP projectors, with 1.07 billion color reproduction for rich visuals. Users praise its clarity for movies and slides but note pixelation at close viewing distances or with high-definition content.

Seamless Connectivity and Usability

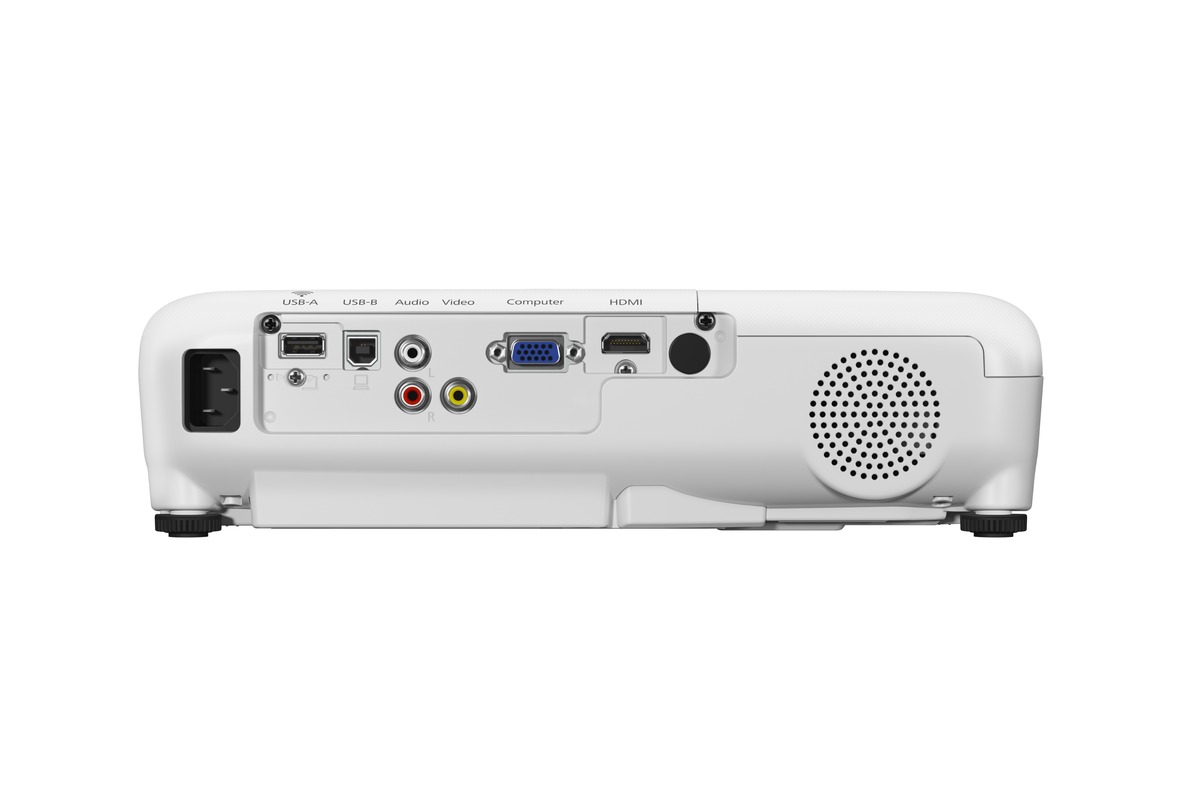

The EB-W05 offers HDMI, VGA, USB Type A/B, and composite inputs, with optional Wi-Fi via the ELPAP10 adapter for wireless streaming through the Epson iProjection app. Split-screen functionality displays two sources simultaneously, ideal for video conferences. The intuitive home screen and QR code reader simplify device pairing. Horizontal keystone slider and auto vertical keystone (±30°) ensure quick image alignment. Users appreciate connectivity but note the optional Wi-Fi adapter increases costs, and some report fan noise (37 dB) in quiet settings.

Portable and Cost-Effective

Weighing 2.5 kg, the EB-W05 is designed for portability, with a carry case for easy transport. Its 210W UHE lamp lasts up to 10,000 hours in ECO mode (2050 lumens), offering 15 years of daily use (based on 1hr 45min films). The front-facing exhaust prevents heat disturbance, and the air filter (10,000 hours) reduces maintenance. Easy lamp replacement is possible even when ceiling-mounted. Users value its longevity but caution about lamp replacement costs (~$149) and material degradation in smoky environments.

Epson EB-W05 WXGA Projector: All Features

Projection Technology	3LCD, RGB liquid crystal shutter
Brightness	3300 lumens (color and white), 2050 lumens (ECO)
Resolution	WXGA (1280x800), 16:10 aspect ratio
Contrast Ratio	15,000:1
Connectivity	HDMI, VGA in, USB Type A/B, composite, Cinch audio in, optional Wi-Fi (ELPAP10)
Software	Epson iProjection, EasyMP Multi-PC Projection, Epson Projector Management
Features	Split-screen, horizontal keystone slider, auto vertical keystone, AV mute slide, Quick Corner, 2W speaker
Lamp Life	6000 hours (Normal), 10,000 hours (ECO)
Compatibility	VGA (640x480) to UXGA (1600x1200), iOS, Android, Chromecast, Roku
Warranty	2-year projector, 1-year or 1000 hours (lamp)

Epson EB-W05 WXGA Projector: All Specifications

Projection System	3LCD, 0.59-inch panel with MLA (D9)
Brightness	3300 lumens (color and white), 2050 lumens (ECO)
Resolution	WXGA (1280x800), 16:10 aspect ratio
Supported Resolution	VGA (640x480) to UXGA (1600x1200)
Contrast Ratio	15,000:1
Light Source	210W UHE lamp
Lamp Life	6000 hours (Normal), 10,000 hours (ECO)
Throw Ratio	1.30–1.56:1
Zoom Ratio	1.2x (optical, manual)
Lens	F=1.49–1.72, f=16.9–20.28 mm
Screen Size	33"–320" (0.89–8.64 m)
Projection Distance	1.68–2.02 m (60" screen)
Keystone Correction	Auto Vertical: ±30°, Manual Horizontal: ±30°
Connectivity	HDMI, VGA in, USB Type A/B, composite, Cinch audio in/out, Wireless LAN IEEE 802.11b/g/n (optional)
Audio	2W mono speaker
Noise Level	37 dB (Normal), 28 dB (ECO)
Power Consumption	282W (Normal), 203W (ECO), 0.2W (Standby)
Operating Temperature	5°C to 35°C
Non-Operating Temperature	-10°C to 60°C
Dimensions (WxDxH)	302 x 237 x 82 mm
Weight	2.5 kg
System Compatibility	Windows 7+, macOS 10.13+, iOS, Android, Chromecast, Roku
Security	Kensington lock, password protection, wireless LAN lock, security cable hole
Certifications	CE, FCC, RoHS
Warranty	2-year projector, 1-year or 1000 hours (lamp)
Package Contents	Projector, VGA cable, power cable, remote control with batteries, carry case, user manual CD, quick start guide, warranty card
