EB-L530U | Epson EB-L530U WUXGA 5200 lumen Laser Projector

Name: EB-L530U | Epson EB-L530U WUXGA 5200 lumen Laser Projector
Brand: Epson
SKU: 11556
Availability: InStock
Rating: 4 (1 reviews)

Model: EB-L530U (V11HA27056/V11HA27020)
Projection System: 3LCD, 0.67" with C2Fine™
Brightness: 5,200 lumens (color/white)
Resolution: WUXGA (1920x1200), 16:10
Connectivity: 2x HDMI (1 with 4K support), HDBaseT, 2x VGA, USB-A/B, LAN, integrated Wi-Fi
Dimensions: 440 x 339 x 136 mm
Weight: 8.2 kg

Description
Reviews (1)

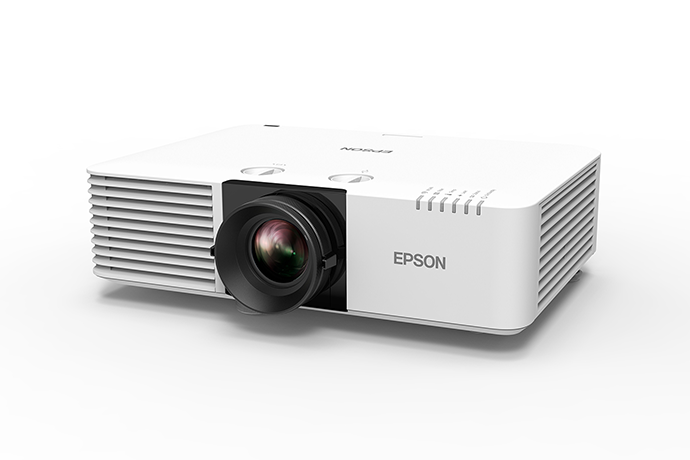

Epson EB-L530U WUXGA 5200 lumen Laser Projector

WUXGA Resolution and High Brightness

The Epson EB-L530U is a 3LCD laser projector with WUXGA (1920x1200) resolution, delivering sharp Full HD visuals in a 16:10 aspect ratio. With 5,200 lumens of color/white brightness and a 2,500,000:1 dynamic contrast ratio, it produces vibrant, detailed images up to 500" in brightly lit rooms. It supports 4K input (downscaled) and detail enhancement technology for crisp text and graphics. Users praise its brightness for corporate and education settings but note it’s not true 4K.

Advanced Connectivity and Collaboration

The EB-L530U offers 2x HDMI (with 4K signal support), HDBaseT, 2x VGA, USB-A, USB-B, LAN, and integrated 5GHz Wi-Fi with Miracast for wireless screen sharing. The built-in media player supports USB content playback, and the Epson Creative Projection App enables custom content creation. It includes edge blending and multi-projector control via Epson Projector Professional Tool. Users value the wireless reliability but report occasional Miracast latency.

Flexible Installation and Laser Durability

With a 1.35–2.2:1 throw ratio and 1.6x optical zoom, the EB-L530U projects 50"–500" images from 1.4–23 m. Manual lens shift (±50% vertical, ±20% horizontal) and geometric correction (keystone ±30°, Quick Corner) ensure precise setups. The 20,000-hour laser light source is virtually maintenance-free, with no lamps to replace. The 8.2 kg chassis supports 360° installation. Users note easy setup but recommend professional mounting for large venues.

Epson EB-L530U WUXGA Laser Projector: All Features

Projection Technology	3LCD, RGB liquid crystal shutter
Brightness	5,200 lumens (color/white, Normal), 3,640 lumens (ECO)
Resolution	WUXGA (1920x1200), 16:10
Contrast Ratio	2,500,000:1 (Dynamic)
Picture Modes	Dynamic, Presentation, Cinema, sRGB, DICOM SIM
Light Source Life	20,000 hours (Normal), 30,000 hours (Extended)
Features	4K input support, detail enhancement, edge blending, Miracast, built-in media player, Epson Creative Projection App, 360° installation, lens shift, ELPWP10 wireless system
Warranty	3 years (projector), 20,000 hours (laser, varies by region)

Epson EB-L530U WUXGA Laser Projector: All Specifications

Projection System	3LCD, 0.67" with C2Fine™
Brightness	5,200 lumens (color/white, ISO 21118), 3,640 lumens (ECO)
Resolution	WUXGA (1920x1200, 2,304,000 pixels), 16:10
Supported Resolution	VGA (640x480) to 4K UHD (3840x2160, downscaled)
Contrast Ratio	2,500,000:1 (Dynamic)
Color Processing	10-bit, up to 1.07 billion colors
Light Source	Laser diode
Light Source Life	20,000 hours (Normal), 30,000 hours (Extended)
Throw Ratio	1.35–2.2:1
Projection Size	50"–500" (1.4–23 m)
Projection Distance	2.33–3.78 m (80" screen)
Lens	F=1.5–1.7, f=20.0–31.8 mm, manual zoom/focus
Lens Shift	Manual, Vertical ±50%, Horizontal ±20%
Connectivity	2x HDMI (1 with 4K support), HDBaseT, 2x VGA, VGA out, USB-A, USB-B, RJ-45, stereo mini in/out, optional ELPWP10
Audio	10W mono speaker
Noise Level	31 dB (Normal), 23 dB (ECO)
Power Consumption	293W (Normal), 227W (ECO), 0.3W (Standby)
Operating Temperature	0°C–45°C
Dimensions (WxDxH)	440 x 339 x 136 mm
Weight	8.2 kg
Security	Kensington lock, security cable hole, wireless LAN security
Certifications	RoHS, CE
Package Contents	Projector, power cable, HDMI cable, remote with batteries, cable cover, quick setup sheet, warranty documents
