EB-485W | Epson EB-485W Bright Ultra Short Throw Projector

Name: EB-485W | Epson EB-485W Bright Ultra Short Throw Projector
Brand: Epson
SKU: 11545
Availability: InStock
Rating: 4 (1 reviews)

Model: EB-485W (V11H454053)
Projection System: 3LCD, 3-chip technology
Brightness: 3100 lumens (color and white)
Resolution: WXGA (1280x800)
Connectivity: HDMI, 2x VGA in, VGA out, USB Type A/B, optional wireless LAN
Dimensions: 367 x 375 x 143 mm
Weight: 5.5 kg (with mount)

Description
Reviews (1)

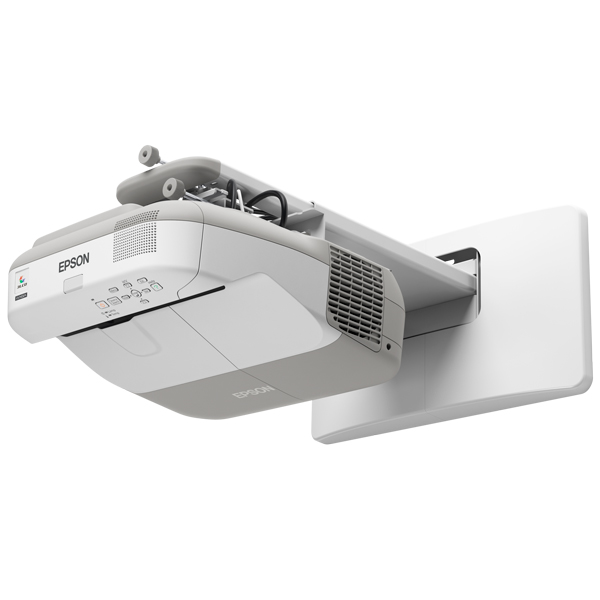

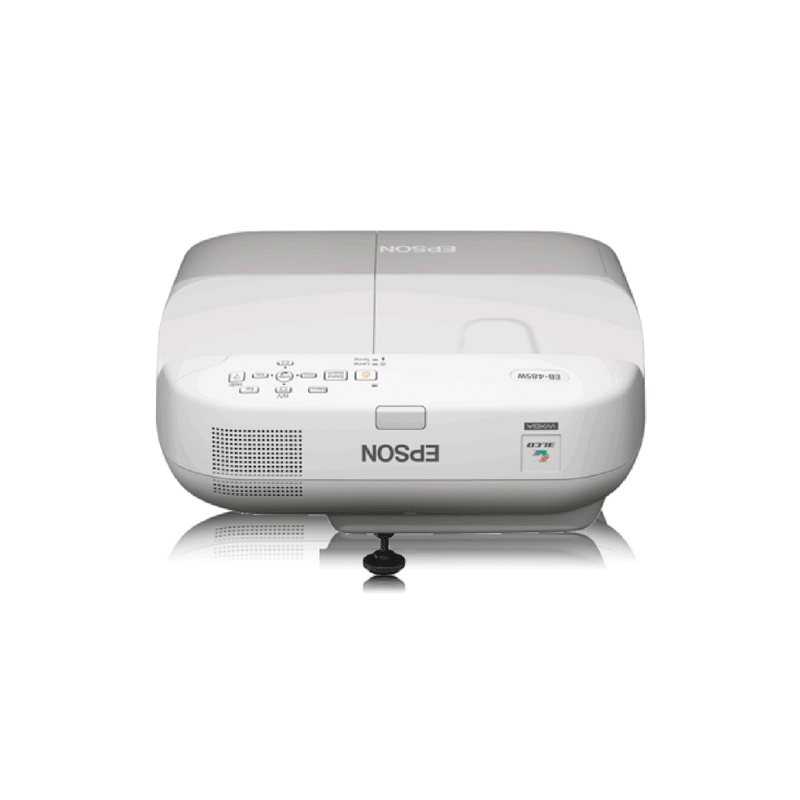

Epson EB-485W Bright Ultra Short Throw Projector

Ultra-Short-Throw Projection

The Epson EB-485W is an ultra-short-throw WXGA (1280x800) projector featuring 3LCD technology with 3100 lumens of color and white brightness, delivering vibrant, high-quality images with minimal shadows and glare. Its 0.27:1 throw ratio projects up to a 100-inch widescreen image from just 8 inches away, making it ideal for classrooms and small meeting rooms with interactive or standard whiteboards. The 16:10 aspect ratio supports HD content and widescreen computers.

Easy Installation and Connectivity

The EB-485W includes an integrated wall mount for quick setup and features color-coded adjustment dials for precise image alignment using Quick Corner and horizontal keystone correction (±5°). It offers HDMI, dual VGA, USB Type A/B, S-Video, and optional wireless LAN via the ELPAP07 adapter for network projection and remote management. The EasyMP software suite supports multi-PC projection and networked content sharing. Users appreciate the plug-and-play USB functionality but note the optional wireless adapter adds cost.

Cost-Effective and Reliable

Equipped with a 215W UHE lamp lasting up to 4000 hours in ECO mode, the EB-485W offers low-cost lamp replacements (approx. $79). The 5000-hour filter life reduces maintenance. A 16W built-in speaker eliminates the need for external audio in small settings, and the A/V Mute function conserves lamp life. Direct power on/off via a wall switch and instant-on/off features enhance usability. Users report reliable performance but caution about potential material degradation in smoky environments.

Epson EB-485W WXGA Projector: All Features

Projection Technology	3LCD, 3-chip technology
Brightness	3100 lumens (color and white)
Resolution	WXGA (1280x800), 16:10 aspect ratio
Contrast Ratio	3000:1
Connectivity	HDMI, 2x VGA in, VGA out, USB Type A/B, S-Video, composite, optional wireless LAN
Software	EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection
Lamp Life	3000 hours (Normal), 4000 hours (ECO)
Compatibility	Windows 7+, macOS 10.13+, network-enabled devices
Warranty	2-year limited (projector), 90 days (lamp)

Epson EB-485W WXGA Projector: All Specifications

Model	EB-485W (V11H454053)
Projection System	3LCD, 3-chip technology, 0.59-inch LCD
Brightness	3100 lumens (color and white), 1800 lumens (ECO)
Resolution	WXGA (1280x800), 16:10 aspect ratio
Contrast Ratio	3000:1
Light Source	215W UHE lamp
Lamp Life	3000 hours (Normal), 4000 hours (ECO)
Throw Ratio	0.27:1 (ultra-short-throw)
Screen Size	60" - 100" (0.4 - 0.7m)
Keystone Correction	Manual Vertical: ±5°, Manual Horizontal: ±5°
Connectivity	HDMI, 2x VGA in, VGA out, USB Type A, USB Type B, S-Video, composite, RS-232, LAN (RJ-45), optional wireless LAN
Audio	16W mono speaker
Noise Level	35 dB (Normal), 28 dB (ECO)
Power Consumption	311W (Normal), 257W (ECO), 0.28W (Standby)
Operating Temperature	5°C to 35°C
Non-Operating Temperature	-10°C to 60°C
Dimensions (WxDxH)	367 x 375 x 143 mm
Weight	5.5 kg (with mount)
System Compatibility	Windows 7+, macOS 10.13+, network-enabled devices
Certifications	CE, FCC, RoHS
Warranty	2-year limited (projector), 90 days (lamp)
Package Contents	Projector, wall mount, power cable, VGA cable, HDMI cable, remote control with batteries, user manual (CD), driver and utilities (CD), warranty documents
