9PHD | Eaton 9PHD Industrial UPS

Name: 9PHD | Eaton 9PHD Industrial UPS
Brand: Eaton
SKU: 12021
Availability: InStock
Rating: 4 (1 reviews)

Model: Eaton 9PHD Industrial UPS
Capacity: 30–200 kVA (30–200 kW)
Input: 380/400/415/480 V, 3-phase
Outputs: Configurable IEC or hardwired
Battery: VRLA, optional lithium-ion
Connectivity: RS232, USB, optional SNMP/Web
Dimensions: 600 x 830 x 1150–2000 mm
Weight: 190–400 kg

Description
Reviews (1)

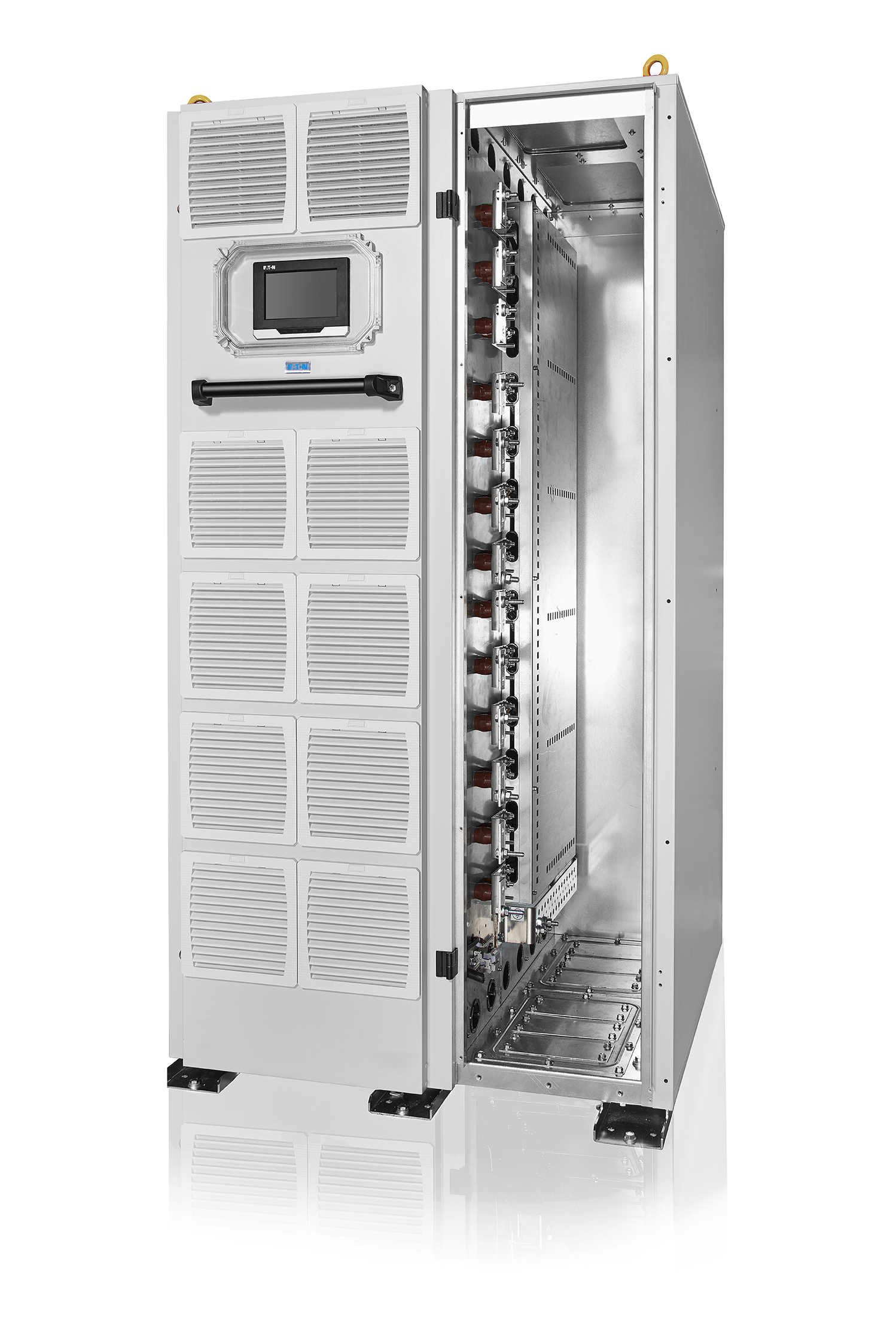

Eaton 9PHD Industrial UPS

Power and Performance

The Eaton 9PHD Industrial UPS provides 30–200 kVA (30–200 kW, 1.0 power factor), ideal for industrial and marine applications like manufacturing and offshore systems. Its double-conversion topology with IGBT-based PWM ensures clean, uninterrupted power. HotSync supports paralleling up to 4 units for N+1 redundancy. Runtime is ~5–15 min at full load with internal batteries, extendable via EBMs. Efficiency reaches 97% in double-conversion mode and >99% in ESS mode. Users praise reliability but note high initial costs.

Connectivity and Protection

It offers configurable IEC or hardwired outputs with surge protection (IEC 61643-11). Connectivity includes RS232, USB, and optional SNMP/Web cards for remote monitoring via Eaton’s Intelligent Power Manager. Active PFC (0.99 input power factor, <5% ITHD) ensures generator compatibility. Protection levels range from IP23 to IP54 with conformal-coated PCBs. Users value marine certifications (DNV-GL, ABS) but note network cards are optional. Ideal for harsh environments.

Design and Features

Weighing 190–400 kg, the compact cabinet (600 x 830 x 1150–2000 mm) uses 1.5 mm plates and vibration absorbers for durability. Features include a touch-screen display, hot-swappable VRLA batteries with ABM (extends life ~50%), and front-access maintenance. Halogen-free cables and battery breakers enhance safety. Users like the small footprint (~4.3–5.5 kW/sq.ft.) but note weight challenges for installation. Ideal for industrial and marine settings.

Eaton 9PHD Industrial UPS: All Features

Capacity	30–200 kVA (30–200 kW)
Topology	Double-conversion online, transformer-free
Input	380/400/415/480 V, 3-phase, 45–65 Hz
Outputs	Configurable IEC or hardwired
Battery	VRLA, hot-swappable, optional lithium-ion
Connectivity	RS232, USB, optional SNMP/Web card
Features	Touch-screen display, HotSync, ABM, IP23–IP54, surge protection, Energy Star
Warranty	2 years (extendable with service plans)

Eaton 9PHD Industrial UPS: All Specifications

Model	Eaton 9PHD Industrial UPS (30–200 kVA)
Capacity	30 kVA/30 kW, 40 kVA/40 kW, 50 kVA/50 kW, 80 kVA/80 kW, 100 kVA/100 kW, 120 kVA/120 kW, 150 kVA/150 kW, 200 kVA/200 kW
Power Factor	1.0
Topology	Double-conversion online, transformer-free IGBT with PWM
Input	380/400/415/480 V, 3-phase, 4-wire, 45–65 Hz
Input Power Factor	0.99, <5% ITHD
Outputs	Configurable IEC or hardwired, 380/400/415/480 V
Output UTHD	<5% (non-linear load)
Battery	VRLA (12 V/7–9 Ah), hot-swappable, optional lithium-ion
Battery Management	ABM with 3-stage charging, automatic battery test
Runtime	~5–15 min at full load (model-dependent), extendable with EBMs
Extended Battery Capability	Up to 4 EBMs
Connectivity	RS232, USB, Relay Out, optional SNMP/Web card (ConnectUPS)
Surge Protection	IEC 61643-11 compliant
Display	Touch-screen LCD
Efficiency	Up to 97% (double-conversion), >99% (ESS mode)
Audible Noise	60 dBA at 1 m
Dimensions	600 x 830 x 1150–2000 mm (model-dependent)
Weight	190–400 kg (model-dependent)
Protection Class	IP23 standard, optional IP54
Certifications	CE, DNV-GL, ABS, IEC 62040-1, Energy Star, RoHS
Warranty	2 years (extendable with service plans)
Software	Eaton Intelligent Power Manager
Accessories	EBMs, rail kits, maintenance bypass, transformers
Package Contents	UPS, USB/RS232 cables, rail kits, user manual, software CD
