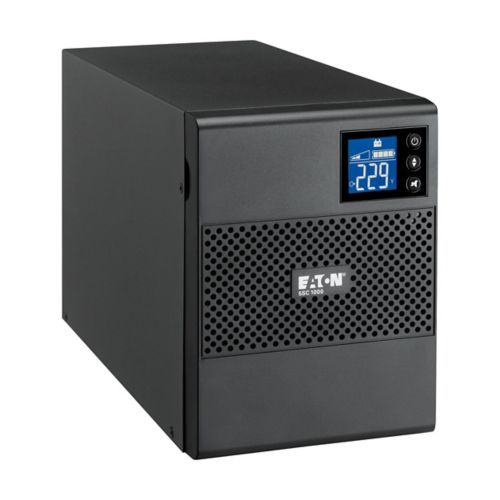

Eaton 5SC UPS

Name: Eaton 5SC UPS
Brand: Eaton
SKU: 12014
Availability: InStock
Rating: 4 (1 reviews)

Model: Eaton 5SC UPS
Capacity: 500–3000 VA 350–2100 W
Input: IEC C14 (500–1500 VA) C20 (2200–3000 VA) 184–276 V
Outputs: 6–8 IEC C13 or NEMA 5-15R (1 C19 for 2200–3000 VA)
Battery: 12 V 7–9 Ah user-replaceable
Connectivity: USB serial optional proxy server management
Dimensions: Tower: 150 x 210 x 340–410 mm Rack RT: 86 x 441 x 405–522 mm
Weight: 6.6–26.5 kg

Description
Reviews (1)

Eaton 5SC UPS

Power and Performance

The Eaton 5SC UPS series offers 500–3000 VA (350–2100 W, 0.7 power factor), ideal for servers, networking devices, and POS systems. Its line-interactive topology with buck/boost AVR corrects voltage (184–276 V) without battery use, ensuring clean power. Pure sinewave output supports active PFC power supplies. Runtime is approximately 5–10 min at 70% load (model-dependent). Users praise its reliability but note limited runtime without external batteries. Perfect for small business IT.

Connectivity and Protection

It features 6–8 IEC C13 or NEMA 5-15R outlets (model-dependent, all battery-backed) with a C14 input (500–1500 VA) or C20 (2200–3000 VA). Surge protection meets IEC 61643-11. USB and serial ports enable integration with Eaton Intelligent Power Manager via a proxy server for remote monitoring. Adjustable input sensitivity suits gensets. Users value sinewave output but note no data line protection or EcoControl. Ideal for sensitive IT equipment.

Design and Features

Weighing 6.6–26.5 kg, it offers tower, rack (2U), or rack/tower (RT) models (e.g., 1000i Rack2U, 441–522 mm depth). The LCD interface displays voltage, load, and runtime, with configurable settings (output voltage, alarms). Features user-replaceable 12 V 7–9 Ah batteries and cold-start capability. Fanless up to 1500 VA (approximately 25 dB). Users like the compact design but note no EBM support. Ideal for kiosks and server rooms.

Eaton 5SC UPS: All Features

Capacity	500–3000 VA 350–2100 W
Topology	Line-interactive with AVR
Input	IEC C14 (500–1500 VA) C20 (2200–3000 VA) 184–276 V
Outputs	6–8 IEC C13 or NEMA 5-15R (model-dependent all battery-backed)
Battery	Sealed lead-acid 12 V 7–9 Ah user-replaceable
Connectivity	USB serial optional proxy server management
Features	LCD display AVR surge protection (IEC 61643-11) pure sinewave output cold-start adjustable sensitivity
Warranty	2 years (extendable with service plans)

Eaton 5SC UPS: All Specifications

Model	Eaton 5SC UPS (500 750 1000 1500 1000i Rack2U 1500i Rack2U 2200i RT2U 3000i RT2U)
Catalog Numbers	5SC500 5SC750 5SC1000 5SC1500 5SC1000IR 5SC1500IR 5SC2200IRT 5SC3000IRT
Capacity	500 VA 350 W 750 VA 525 W 1000 VA 700 W 1500 VA 1080 W 2200 VA 1980 W 3000 VA 2100 W
Power Factor	0.7 (0.9 for 2200–3000 VA)
Topology	Line-interactive with buck and boost AVR
Input	IEC C14 (500–1500 VA) IEC C20 (2200–3000 VA) 184–276 V (230 V default)
Outputs	500–750 VA: (6) IEC C13 or (8) 5-15R; 1000–1500 VA: (8) IEC C13 or 5-15R; 2200–3000 VA: (8) C13 (1) C19 all battery-backed
Battery	Sealed lead-acid 12 V 7–9 Ah (1–4 batteries model-dependent) user-replaceable
Battery Management	Automatic battery test deep-discharge protection cold-start capable
Runtime	Approximately 5–10 min at 70–80% load (model-dependent see Eaton website for runtime graph)
Extended Battery Capability	Not supported
Connectivity	USB serial (RS232) optional proxy server with Eaton Intelligent Power Manager
Surge Protection	IEC 61643-11 compliant
Display	LCD for input output voltage load battery level runtime
Efficiency	Approximately 97–98%
Dimensions	Tower (500–1500 VA): 150 x 210 x 340–410 mm; Rack RT (1000–3000 VA): 86 x 441 x 405–522 mm
Weight	6.6–26.5 kg (model-dependent)
Certifications	IEC EN 62040-1 IEC EN 62040-2 CE UL (select models)
Warranty	2 years (extendable with service plans)
Accessories	Rail kits (rack models) Eaton Battery+ replacement
Package Contents	UPS USB cable serial cable rail kits (rack models) quick start guide safety instructions
