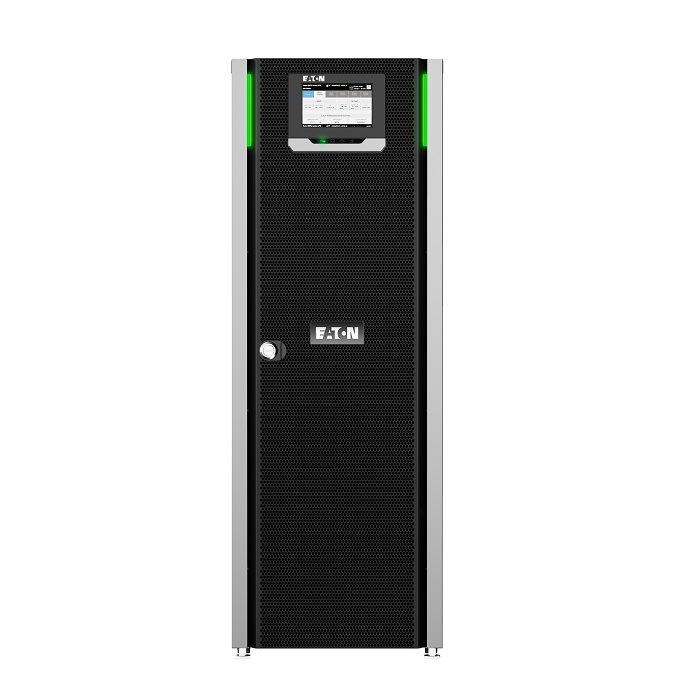

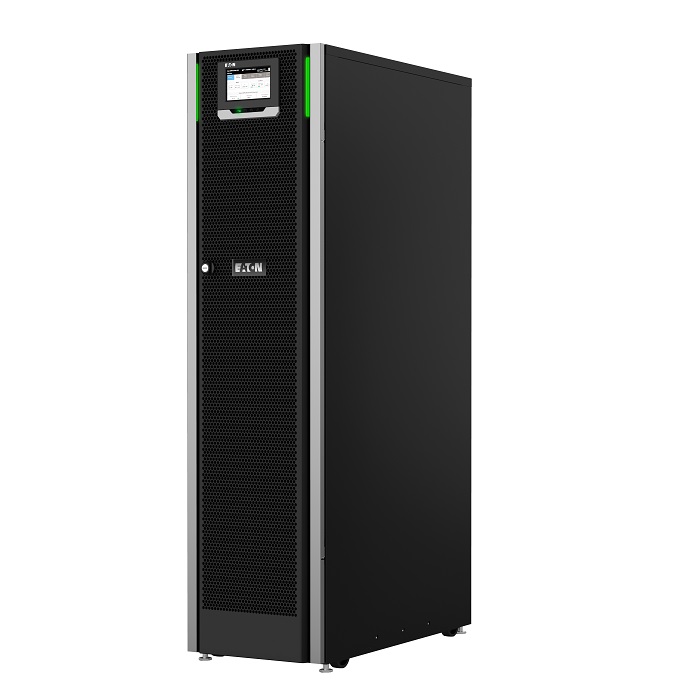

Eaton 91PS and 93PS UPS

Name: Eaton 91PS and 93PS UPS
Brand: Eaton
SKU: 12016
Availability: InStock
Rating: 4 (1 reviews)

Model: Eaton 91PS (8–30 kW) 93PS (8–40 kW)
Capacity: 91PS: 8–30 kW (single-phase); 93PS: 8–40 kW (three-phase)
Input: 91PS: 220/230/240 V (1:1), 380/400/415 V (3:1); 93PS: 380/400/415 V (3:3)
Outputs: Hardwired (configurable to IEC/NEMA)
Battery: VRLA or LiFePO4 9 Ah hot-swappable
Connectivity: USB serial optional Network-M2 card
Dimensions: 600 x 800 x 1876 mm
Weight: 150–400 kg

Description
Reviews (1)

Eaton 91PS and 93PS UPS

Power and Performance

The Eaton 91PS (8–30 kW, single-phase) and 93PS (8–40 kW, three-phase) offer a 1.0 power factor, delivering 25% more power than lower power factor UPSs. Double-conversion topology ensures zero transfer time. Efficiency reaches 96.2% in double-conversion and 99% in Energy Saver System (ESS) mode, saving ~€1,000/year for a 30 kW model vs. 94% efficiency. Runtime is ~15–30 min with internal batteries, extendable with EBCs. HotSync supports paralleling up to 8 units. Users praise uptime but note high costs. Ideal for data centers and marine applications.

Connectivity and Protection

Hardwired outputs (configurable to IEC/NEMA) with surge protection (IEC 61643-11). Connectivity includes USB, serial, and optional Network-M2 card for remote monitoring via Brightlayer Data Centers suite. Input power factor of 0.99 and <5% ITHD ensure generator compatibility. Integrated maintenance bypass and distribution cabinets simplify setup. Users value cybersecurity compliance but note optional cards add cost. Ideal for critical IT and industrial systems.

Design and Features

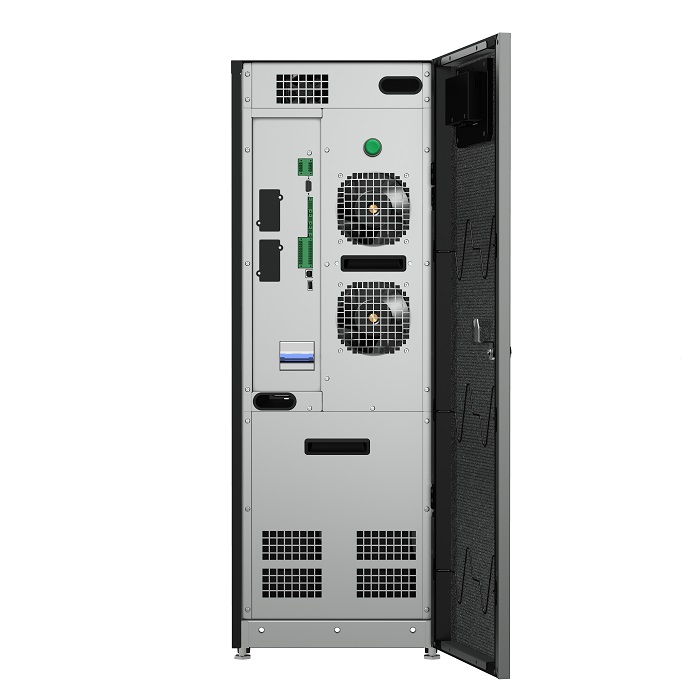

Weighing 150–400 kg, the modular design (600 x 800 x 1876 mm) saves ~30% floor space. Hot-swappable VRLA or LiFePO4 batteries, ABM technology (extends battery life ~50%), and hot-scalable power modules (8–20 kW UPMs) reduce MTTR to ~30 min. Graphical LCD displays status. Marine models include vibration dampers. Users like scalability but note weight challenges. DNV-GL certified for marine use (select SKUs).

Eaton 91PS and 93PS UPS: All Features

Capacity	91PS: 8–30 kW (single-phase); 93PS: 8–40 kW (three-phase)
Topology	Double-conversion online
Input	91PS: 220/230/240 V (1:1), 380/400/415 V (3:1); 93PS: 380/400/415 V (3:3)
Outputs	Hardwired (configurable to IEC/NEMA)
Battery	VRLA or LiFePO4 9 Ah hot-swappable
Connectivity	USB serial optional Network-M2 card
Features	LCD display HotSync ABM ESS VMMS maintenance bypass surge protection (IEC 61643-11) DNV-GL (marine SKUs)
Warranty	1 year (extendable with service plans)

Eaton 91PS and 93PS UPS: All Specifications

Model	Eaton 91PS (8–30 kW) 93PS (8–40 kW)
Catalog Numbers	91PS-8 91PS-30 93PS-10 93PS-30 93PS-40 (model-dependent)
Capacity	91PS: 8–30 kW (single-phase); 93PS: 8–40 kW (three-phase)
Power Factor	1.0
Topology	Double-conversion online
Input	91PS: 220/230/240 V (1:1), 380/400/415 V (3:1); 93PS: 380/400/415 V (3:3) 50/60 Hz
Input Power Factor	0.99 <5% ITHD
Battery	VRLA or LiFePO4 9 Ah hot-swappable
Battery Management	ABM with 3-stage charging automatic battery test
Runtime	~15–30 min at full load (extendable with EBCs)
Extended Battery Capability	External Battery Cabinets (EBCs up to 8)
Connectivity	USB serial relay optional Network-M2 card
Surge Protection	IEC 61643-11 compliant
Display	Graphical LCD for status and energy metering
Efficiency	96.2% double-conversion 99% ESS mode
Audible Noise	65 dB at 1 m
Dimensions	600 x 800 x 1876 mm
Weight	150–400 kg (model-dependent)
Protection Class	IP20
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 CE DNV-GL (marine SKUs) Energy Star
Warranty	1 year (extendable with service plans)
Software	Brightlayer Data Centers suite Intelligent Power Manager
Accessories	EBCs maintenance bypass (IAC-B IAC-BD) distribution cabinet (IAC-PD)
Package Contents	UPS USB serial cables user manual software CD
