NED3090019SB-132BA | palit GeForce RTX™ 3090 GamingPro
- Model: NED3090019SB-132BA
- GPU: NVIDIA RTX 3090
- Memory: 24GB GDDR6X, 936 GB/s
- Cooling: Triple 90mm TurboFan 3.0, 0dB Zero-Fan, DrMOS
- Connectivity: 1x HDMI 2.1, 3x DisplayPort 1.4a, PCIe 4.0 x16
- Dimensions: 294 x 112 x 60 mm
- Weight: ~1.5 kg
palit GeForce RTX™ 3090 GamingPro
Exceptional Performance and Ampere Architecture
The Palit GeForce RTX 3090 GamingPro (NED3090019SB-132BA) is powered by NVIDIA’s Ampere architecture, featuring 10,496 CUDA cores and a 1,695 MHz boost clock. With 24GB GDDR6X memory at 19.5 Gbps (936 GB/s bandwidth), it delivers outstanding 8K (~50–60 FPS in *Control* Ultra with DLSS) and 4K (~100–120 FPS) gaming performance. It includes 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, DLSS, NVENC, and supports AI workloads. Users praise its 4K/8K capabilities but note high power demands.
Advanced Cooling and Robust Design

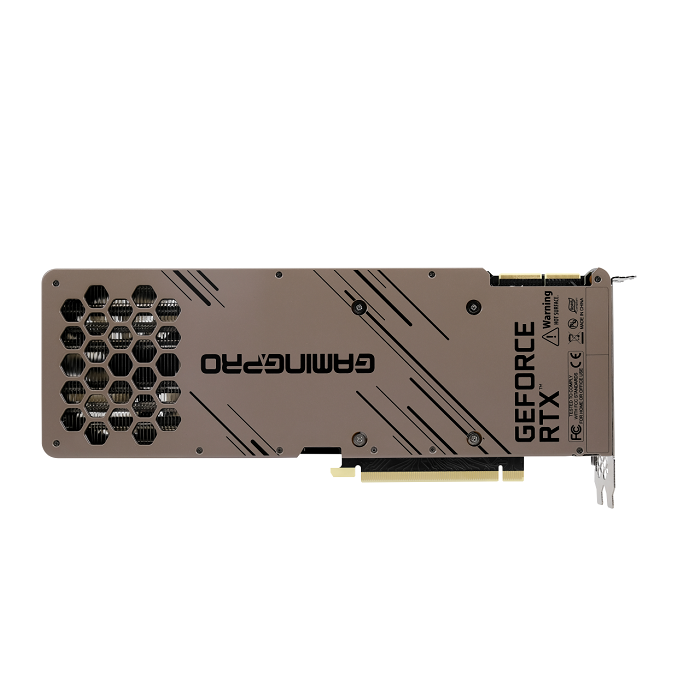

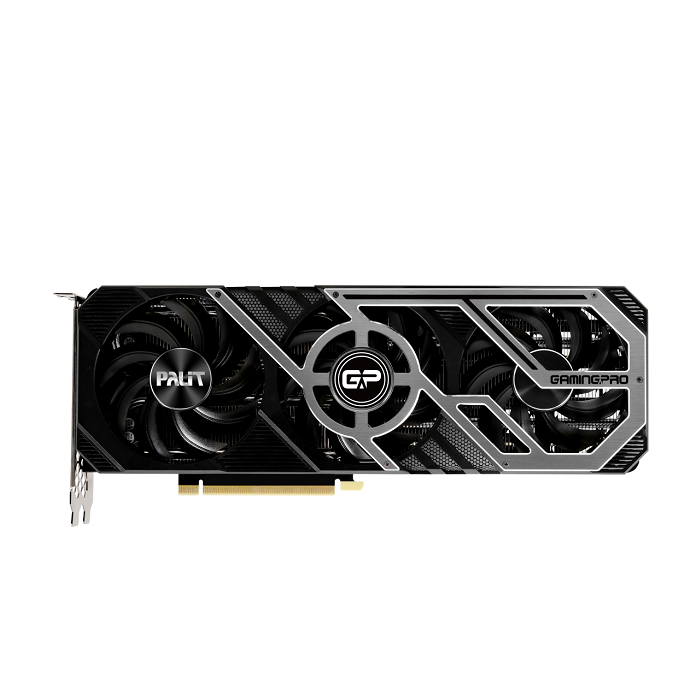

Equipped with a Triple A Die Casting Plate Kit and three 90mm TurboFan 3.0 fans with double ball bearings and IP5X dust resistance, the card maintains ~65–70°C under load with moderate noise (~35–40 dB) due to 0dB Zero-Fan mode. The 2.7-slot design (294 x 112 x 60 mm) with ARGB lighting and a metal backplate ensures durability. Users commend cooling efficiency but note noise at full load. Use Palit ThunderMaster for fan and ARGB control.
Comprehensive Connectivity and Power

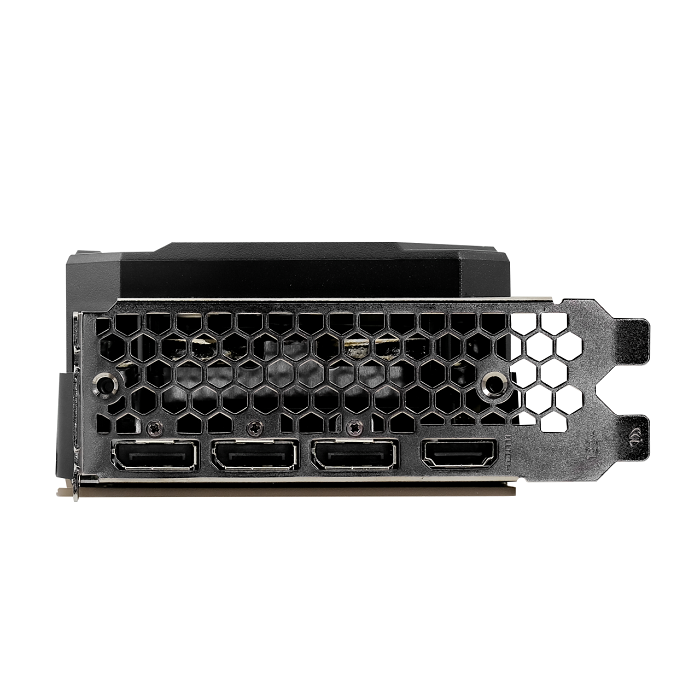

Supporting PCIe 4.0 x16, the card offers 1x HDMI 2.1 and 3x DisplayPort 1.4a for 4K/120Hz or 8K/60Hz displays, supporting up to four monitors. With a 350W TDP, it requires an 850W PSU and two 8-pin PCIe connectors. Users value HDMI 2.1 for TVs and NVENC for 8K streaming but report occasional coil whine, mitigated with power limit tweaks in ThunderMaster or MSI Afterburner.
Palit GeForce RTX 3090 GamingPro: All Features
| Architecture | NVIDIA Ampere |
|---|---|
| CUDA Cores | 10,496 |
| Boost Clock | 1,695 MHz |
| Memory | 24GB GDDR6X, 19.5 Gbps, 384-bit, 936 GB/s |
| Cooling | Triple 90mm TurboFan 3.0, 0dB Zero-Fan, DrMOS |
| Features | 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, DLSS, NVENC, G-SYNC, NVIDIA Reflex, ARGB LED, DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6 |
| Connectivity | 1x HDMI 2.1, 3x DisplayPort 1.4a, PCIe 4.0 x16 |
| Warranty | 2 years |
Palit GeForce RTX 3090 GamingPro: All Specifications
| Model | NED3090019SB-132BA |
|---|---|
| GPU | NVIDIA RTX 3090 (GA102-300-A1) |
| CUDA Cores | 10,496 |
| Base Clock | 1,395 MHz |
| Boost Clock | 1,695 MHz |
| Memory | 24,576 MB GDDR6X, 384-bit, 19.5 Gbps, 936 GB/s bandwidth |
| Texture Units (TMUs) | 328 |
| ROPs | 112 |
| Cooling | Triple 90mm TurboFan 3.0, double ball bearings, IP5X dust resistance, DrMOS |
| Interface | PCIe 4.0 x16 |
| Outputs | 1x HDMI 2.1, 3x DisplayPort 1.4a |
| Max Digital Resolution | 7680 x 4320 @ 60Hz |
| Dimensions | 294 x 112 x 60 mm (2.7 slots) |
| Power Requirements | 850W PSU, 2x 8-pin PCIe connectors, 350W TDP |
| Operating System | Windows 7/10/11 64-bit, Linux |
| Features | Ray Tracing, DLSS, NVENC, G-SYNC, NVIDIA Reflex, ARGB LED, DirectX 12 Ultimate, Vulkan RT API, OpenGL 4.6, HDCP 2.3, VR Ready |
| Warranty | 2 years |
| Certifications | RoHS, CE |
| Package Contents | Graphics card, manual, power cable |
