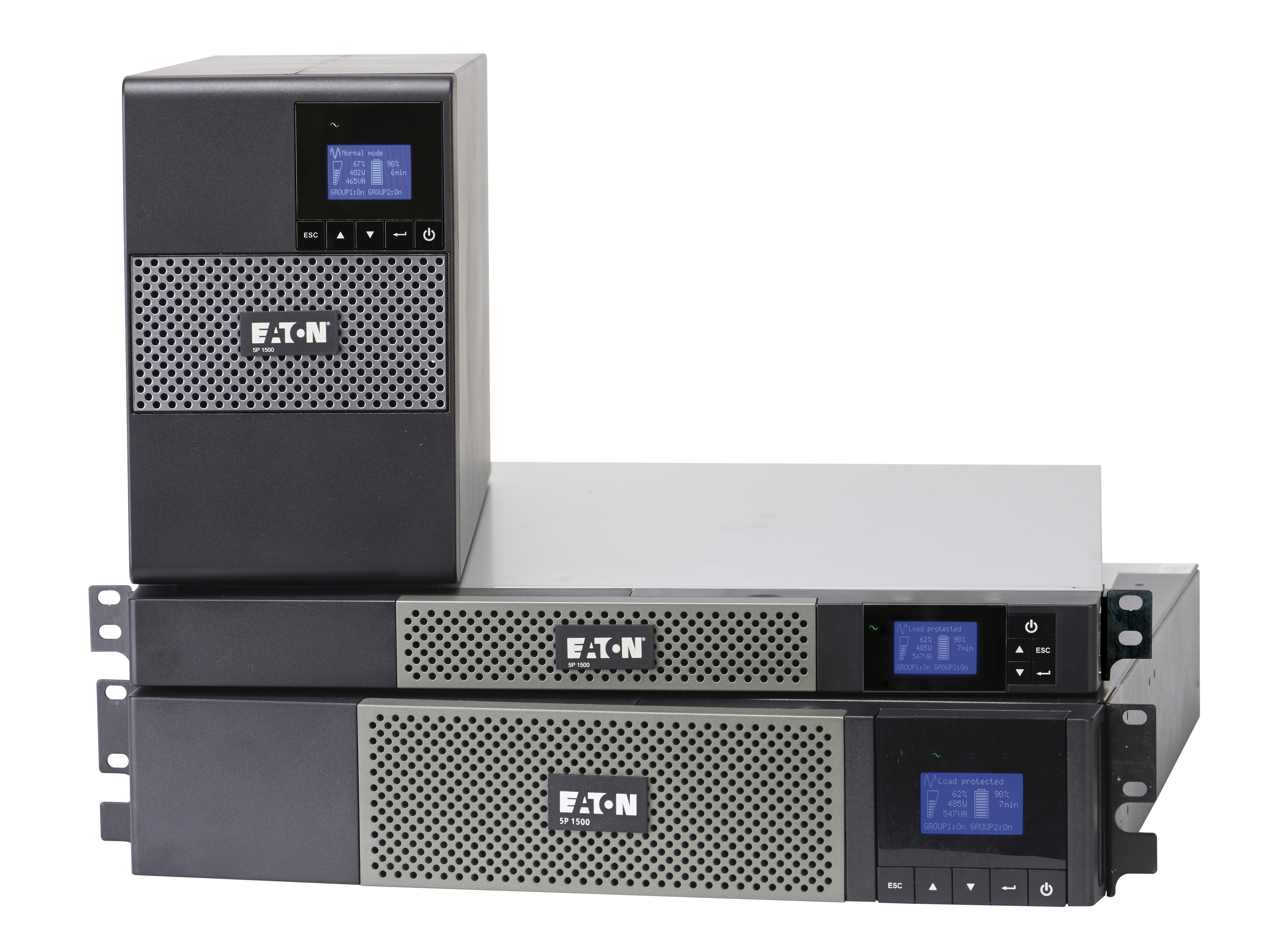

Eaton 5P UPS

Name: Eaton 5P UPS
Brand: Eaton
SKU: 12010
Availability: InStock
Rating: 4 (1 reviews)

Models: 5P750, 5P1000, 5P1500, 5P3000 (tower); 5P1000R, 5P1500R (1U); 5P750RC, 5P1000RC, 5P1500RC (2U)
Power: 750–3000 VA, 600–2700 W
Input: 5-15P (750–1500 VA), L5-30P (3000 VA)
Outputs: 5–10 NEMA 5-15R/5-20R, 1 L5-30R (3000 VA)
Battery: Lead-acid or lithium-ion, user-replaceable
Connectivity: USB, RS-232, optional NETWORK-M2
Weight: 10.6–29.5 kg (23.4–65 lbs)

Description
Reviews (1)

Eaton 5P UPS

Enterprise-Class Power Protection

The Eaton 5P UPS series (750–3000 VA, 600–2700 W) delivers reliable backup power for network closets, server rooms, and edge computing. Line-interactive topology with true sine wave output ensures compatibility with sensitive equipment. Models like 5P1500 (1440 VA/1100 W) provide ~7–22 minutes runtime at half/full load. Advanced Battery Management (ABM) extends battery life by ~50%. Surge protection (IEC 61643-1) handles spikes up to ~1.5 kV. Users praise uptime reliability but note limited runtime for high loads (80% capacity).

Flexible Design and Connectivity

Available in tower (5P750, 5P1000, 5P1500, 5P3000), 1U rackmount (5P1000R, 5P1500R), and 2U compact rackmount (5P750RC, 5P1000RC, 5P1500RC). Compact models (2U, 16-inch depth) suit 2-post/4-post racks or wall mounting. Features USB, RS-232, and optional Gigabit Network Card (NETWORK-M2) for remote management. The graphical LCD displays status, load, and events. EcoControl saves ~30% energy by shutting off idle devices. Users appreciate versatility but note optional network card cost (~$200–$300).

Battery and Software Management

Uses sealed lead-acid batteries (user-replaceable, ~3–5 year lifespan) or lithium-ion (select 1U models, ~8–10 year lifespan). ABM technology optimizes charging, reducing wear. Eaton Intelligent Power Manager (IPM) software integrates with VMware, Citrix, and Microsoft for virtualized environments, enabling automated shutdowns and VM migration. Efficiency reaches 99% in normal mode. Users value remote management but report battery replacement costs (~$100–$200) and software learning curve.

Eaton 5P UPS: All Features

Power Capacity	750–3000 VA, 600–2700 W
Topology	Line-interactive, true sine wave
Input	5-15P (750–1500 VA), L5-30P (3000 VA), 110–125 V, 50/60 Hz autoselect
Outputs	5–10 NEMA 5-15R or 5-20R, 1 L5-30R (3000 VA)
Battery	Sealed lead-acid (3–5 years), lithium-ion option (8–10 years, select 1U models)
Connectivity	USB, RS-232, optional NETWORK-M2 Gigabit card, RPO/ROO connector
Features	ABM technology, EcoControl (30% energy savings), graphical LCD, surge protection (IEC 61643-1), Intelligent Power Manager software
Warranty	3 years (UPS and batteries), optional extensions

Eaton 5P UPS: All Specifications

Models	5P750, 5P1000, 5P1500, 5P3000 (tower); 5P1000R, 5P1500R (1U); 5P750RC, 5P1000RC, 5P1500RC (2U compact)
Power Capacity	750 VA/600 W, 1000 VA/770 W, 1440 VA/1100 W, 3000 VA/2700 W
Topology	Line-interactive, true sine wave
Input	5-15P (750–1500 VA, 110–125 V), L5-30P (3000 VA), 50/60 Hz autoselect
Battery	Sealed lead-acid (3–5 years), lithium-ion (8–10 years, select 1U models), user-replaceable
Battery Management	ABM technology, automatic testing, deep-discharge protection
Runtime	~7–12 minutes (full load), ~17–22 minutes (half load), model-dependent
Connectivity	USB, RS-232, optional NETWORK-M2 Gigabit card, RPO/ROO connector
Efficiency	Up to 99% (normal mode)
Dimensions	Tower: 231 x 150 x 345 mm (5P750/1000), 440 x 150 x 345 mm (5P1500/3000); 1U: 43.2 x 438 x 509 mm; 2U: 86.2 x 438 x 406 mm
Weight	10.6–29.5 kg (23.4–65 lbs), model-dependent
Protection	Surge protection (IEC 61643-1), circuit breaker, EcoControl (30% energy savings)
Certifications	IEC/EN 62040-1, IEC/EN 62040-2, CE, ENERGY STAR (2200/3000 VA tower, 2U models)
Warranty	3 years (UPS and batteries), optional 1–2 year extensions
Accessories	NETWORK-M2 Gigabit card, Environmental Monitoring Probe Gen 2, rail kits (2U models)
Package Contents	UPS, USB cable, RS-232 cable, user manual, quick start guide
