FS6400 | FlashStation FS6400

Name: FS6400 | FlashStation FS6400
Brand: Synology
SKU: 11944
Availability: InStock
Rating: 4 (1 reviews)

Model: Synology FlashStation FS6400
CPU: 2x Intel Xeon Silver 4110 8-core
Memory: 32GB DDR4 ECC RDIMM (up to 512GB)
Storage: 24x 2.5" SAS/SATA SSD bays
Ports: 2x 10GbE, 2x 1GbE, 2x USB 3.2 Gen 1
Dimensions: 482 x 724 x 88 mm
Weight: 17 kg (without drives)

Description
Reviews (1)

FlashStation FS6400

Performance and Processing

Powered by dual Intel Xeon Silver 4110 8-core processors (2.1 GHz, up to 3.0 GHz Turbo), the FS6400 delivers over 240,000 iSCSI 4K random write IOPS for low-latency tasks. It supports 32GB DDR4 ECC RDIMM (expandable to 512GB) for robust multitasking. Users praise its performance for virtualization and databases but note high power consumption (~300W). Ideal for multimedia, VMs, and transaction processing.

Storage and Scalability

Features 24x 2.5" SAS/SATA SSD bays (drives sold separately), supporting RAID 0, 1, 5, 6, 10, F1, and JBOD. Flash volume deduplication on Synology SSDs achieves a 3.15:1 data reduction ratio. Expandable with two RX1222sas or FX2421 units for up to 72 drives. Users value the scalability but note SSD costs add up. Btrfs file system enhances data integrity. Perfect for enterprise storage.

Connectivity and Features

Includes 2x 10GbE, 2x 1GbE, 2x USB 3.2 Gen 1, and 2x PCIe 3.0 slots for optional Ethernet cards (25GbE/40GbE). Supports Link Aggregation and failover. Certified for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack. Features AES-256 encryption, Virtual Machine Manager, and Synology DSM OS. Users appreciate connectivity but note rail kit sold separately. Ideal for virtualization and high-speed networks.

Synology FlashStation FS6400: All Features

CPU	Dual Intel Xeon Silver 4110 8-core (2.1 GHz, up to 3.0 GHz)
Memory	32GB DDR4 ECC RDIMM (expandable to 512GB)
Storage	24x 2.5" SAS/SATA SSD bays, expandable to 72 drives
RAID	0, 1, 5, 6, 10, F1, JBOD
Connectivity	2x 10GbE, 2x 1GbE, 2x USB 3.2 Gen 1, 2x PCIe 3.0
Features	Btrfs, iSCSI, Virtual Machine Manager, AES-256, Link Aggregation, failover
Power	Dual 800W redundant PSUs
Warranty	5 years

Synology FlashStation FS6400: All Specifications

Model	Synology FlashStation FS6400
CPU	2x Intel Xeon Silver 4110 8-core (2.1 GHz, up to 3.0 GHz, 11MB cache)
Memory	32GB DDR4 ECC RDIMM (4x slots, expandable to 512GB)
Storage	24x 2.5" SAS/SATA SSD bays (drives sold separately)
Expansion	Supports 2x RX1222sas or FX2421 (up to 72 drives)
RAID Support	RAID 0, 1, 5, 6, 10, F1, JBOD, Basic
Performance	Over 240,000 iSCSI 4K random write IOPS
File System	Btrfs, ext4

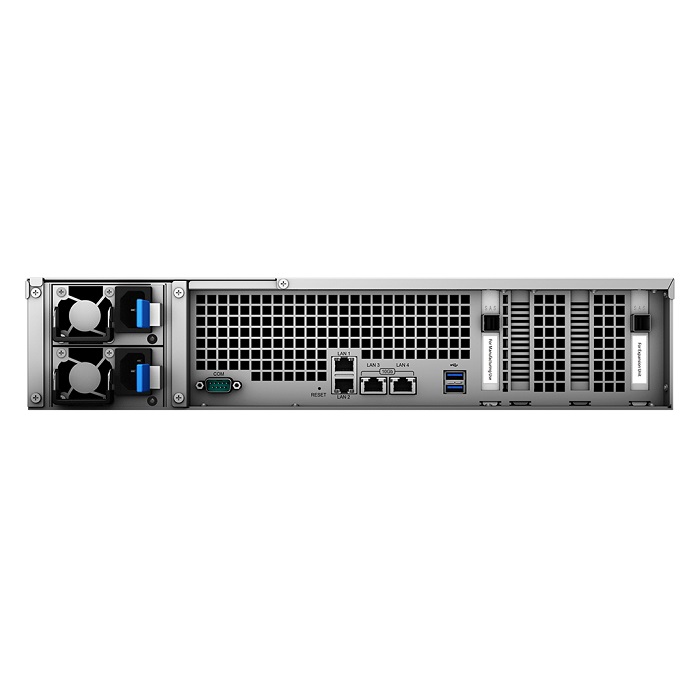

Ports	2x 10GbE RJ45, 2x 1GbE RJ45, 2x USB 3.2 Gen 1, 1x expansion port
Expansion Slots	2x PCIe 3.0 x8 (for 25GbE/40GbE cards)
Virtualization	VMware vSphere, Microsoft Hyper-V, Citrix XenServer, OpenStack, Kubernetes CSI
Max Users	16,000 accounts, 10,000 concurrent connections
Max Files	5,000,000 (Synology Drive)
Power Supply	Dual 800W redundant (100–240V AC, 50/60 Hz)
Cooling	4x 80mm fans
Noise Level	~28.5 dB(A) (idle)
Dimensions	482 x 724 x 88 mm (2U rackmount)
Weight	17 kg (without drives)
Certifications	ECC, CE, EAC, Energy Star
Warranty	5 years
Software	Synology DiskStation Manager (DSM)
Accessories	RKS1317 rail kit (sold separately), Synology SSDs, Ethernet cards
Package Contents	NAS, accessory pack, 2x power cords, quick start guide
