12G-P5-3968-KR | EVGA GeForce RTX 3080 Ti FTW3 ULTRA HYBRID GAMING, 12G-P5-3968-KR, 12GB GDDR6X, iCX3 Technology, ARGB LED, Metal Backplate
- Model: 12G-P5-3968-KR
- GPU: NVIDIA RTX 3080 Ti
- Memory: 12GB GDDR6X, 912 GB/s
- Cooling: Hybrid (240mm AIO radiator with 2x 120mm fans, iCX3)
- Connectivity: 1x HDMI 2.1, 3x DisplayPort 1.4a, PCIe 4.0 x16
- Dimensions: 285.4 x 111.2 x 44.5 mm (radiator: 240 x 120 x 27 mm)
- Weight: ~1.3 kg (card only)
EVGA GeForce RTX 3080 Ti FTW3 ULTRA HYBRID GAMING, 12G-P5-3968-KR, 12GB GDDR6X, iCX3 Technology, ARGB LED, Metal Backplate
Ampere Architecture and Performance
The EVGA GeForce RTX 3080 Ti FTW3 ULTRA HYBRID GAMING (12G-P5-3968-KR) leverages NVIDIA’s Ampere architecture, featuring 10240 CUDA cores and a 1800 MHz boost clock. Its 12GB GDDR6X memory at 19 Gbps (912 GB/s bandwidth) delivers exceptional 4K (~100–120 FPS in *Cyberpunk 2077* Ultra with DLSS) and solid 8K (~40–60 FPS) gaming. It includes 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, DLSS, and NVENC for streaming. Users praise its high-end performance and content creation capabilities but note significant power demands.
Hybrid Cooling and Premium Design

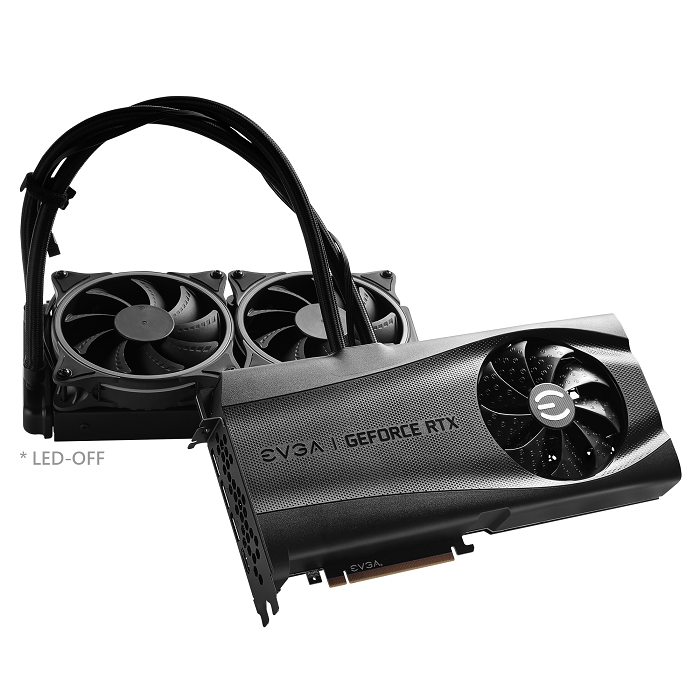

The hybrid cooling system features a 240mm AIO radiator with two 120mm fans and iCX3 technology with multiple thermal sensors, maintaining ~50–60°C under load with low noise (~25–30 dB). The 2.2-slot design (285.4 x 111.2 x 44.5 mm) includes ARGB LED and a metal backplate, fitting high-end builds. Users commend its cooling efficiency and aesthetics but note radiator space requirements. Use EVGA Precision X1 for ARGB control and overclocking.
Connectivity and Power Requirements

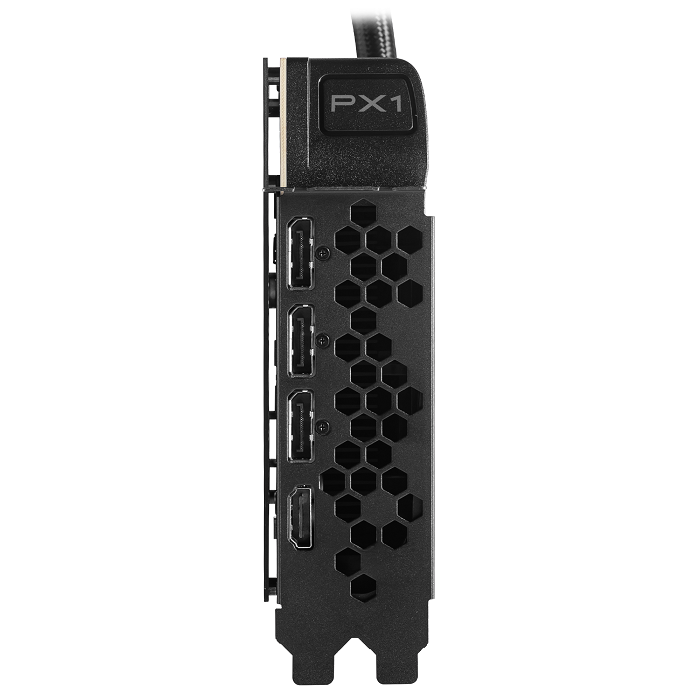

Supporting PCIe 4.0 x16, the card offers 1x HDMI 2.1 and 3x DisplayPort 1.4a for 4K/120Hz or 8K/60Hz displays. It requires an 850W PSU with three 8-pin PCIe connectors (400W TDP). Users value its display versatility and NVENC for streaming but caution about PSU quality, case space for the radiator, and potential power spikes. Supports up to 4 monitors.
EVGA GeForce RTX 3080 Ti FTW3 ULTRA HYBRID GAMING: All Features
| Architecture | NVIDIA Ampere |
|---|---|
| CUDA Cores | 10240 |
| Boost Clock | 1800 MHz |
| Memory | 12GB GDDR6X, 19 Gbps, 384-bit, 912 GB/s |
| Cooling | Hybrid (240mm AIO radiator with 2x 120mm fans, iCX3 technology) |
| Features | 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, DLSS, NVENC encoder, G-SYNC, NVIDIA Reflex, NVIDIA Broadcast, RTX IO, ARGB LED, DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6, NVLink (SLI-Ready), VR Ready |
| Connectivity | 1x HDMI 2.1, 3x DisplayPort 1.4a, PCIe 4.0 x16 |
| Warranty | 3 years (registration recommended) |
EVGA GeForce RTX 3080 Ti FTW3 ULTRA HYBRID GAMING: All Specifications
| Model | 12G-P5-3968-KR |
|---|---|
| GPU | NVIDIA RTX 3080 Ti (GA102-225-A1) |
| CUDA Cores | 10240 |
| Base Clock | 1365 MHz |
| Boost Clock | 1800 MHz |
| Memory | 12,288 MB GDDR6X, 384-bit, 19 Gbps, 912 GB/s bandwidth |
| Texture Units (TMUs) | 320 |
| ROPs | 112 |
| Cooling | Hybrid (240mm AIO radiator with 2x 120mm fans, iCX3 technology) |
| Interface | PCIe 4.0 x16 |
| Outputs | 1x HDMI 2.1, 3x DisplayPort 1.4a |
| Max Digital Resolution | 7680 x 4320 @ 60Hz |
| Dimensions | 285.4 x 111.2 x 44.5 mm (2.2 slots, radiator: 240 x 120 x 27 mm) |
| Power Requirements | 850W PSU, 3x 8-pin PCIe connectors, 400W TDP |
| Operating System | Windows 7/10/11 64-bit, Linux |
| Features | Ray Tracing, DLSS, NVENC encoder, G-SYNC, NVIDIA Reflex, NVIDIA Broadcast, RTX IO, ARGB LED, DirectX 12 Ultimate, Vulkan RT API, OpenGL 4.6, HDCP 2.3, NVLink (SLI-Ready), VR Ready |
| Warranty | 3 years (registration recommended) |
| Certifications | RoHS, CE |

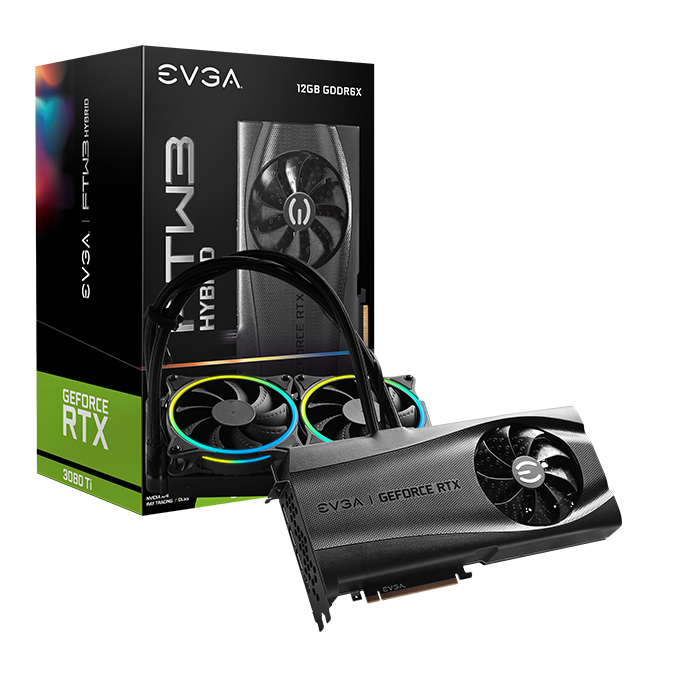

| Package Contents | Graphics card, 240mm radiator, quick installation guide, driver disk |
