EB-L730U | Epson EB-L730U 7000 lumen Full HD Laser Projector
- Model: EB-L730U (V11HA25040/V11HA25056, white; V11HA25020, black)
- Projection System: 3LCD, 0.67" panel with C2Fine™
- Brightness: 7,000 lumens (color and white)
- Resolution: WUXGA (1920x1200)
- Connectivity: HDBaseT, 2x HDMI, HDMI out, VGA in/out, USB-A/B, RJ-45, 5GHz Wi-Fi, Miracast
- Dimensions: 440 x 304 x 122 mm
- Weight: 8.5 kg
Epson EB-L730U 7000 lumen Full HD Laser Projector
High Brightness and WUXGA Resolution
The Epson EB-L730U is a 3LCD laser projector delivering 7,000 lumens of color and white brightness with WUXGA (1920x1200) resolution, supporting Full HD 1080p and 4K input. Its 2,500,000:1 dynamic contrast ratio ensures vivid, sharp images for education, corporate, retail, and digital signage applications. The projector supports up to 500" displays with excellent color accuracy and no rainbow effect, ideal for brightly lit environments. Users praise the bright, detailed visuals but note limited native 4K resolution.
Advanced Connectivity and Content Creation
The EB-L730U offers HDBaseT for uncompressed Full HD/4K signal transmission over 100 m, 2x HDMI (with HDCP 2.3), HDMI output, VGA in/out, and integrated 5GHz Wi-Fi with Miracast for wireless streaming. The built-in media player and Epson Creative Projection App enable PC-free content creation with templates, effects, and playlist scheduling. It supports Crestron, Extron, AMX, and Control4 for network control. Users value the versatile connectivity but note the optional wireless LAN unit (~$100) may be required for some setups.
Flexible Installation and Long-Lasting Laser
With a 1.6x optical zoom (1.35–2.2:1 throw ratio), ±50% vertical and ±20% horizontal lens shift, and 360° installation flexibility, the EB-L730U suits complex setups. Features like edge blending, Quick Corner, and arc correction support multi-projector installations. The laser light source lasts up to 20,000 hours (Normal) or 30,000 hours (Extended), with a 10W speaker for audio. At 8.5 kg, it’s lightweight for its class. Users appreciate the easy setup but note fan noise (36 dB Normal) in quiet settings.
Epson EB-L730U WUXGA 3LCD Laser Projector: All Features
| Projection Technology | 3LCD, 0.67" panel with C2Fine™ (D10) |
|---|---|
| Brightness | 7,000 lumens (color and white), ~4,900 lumens (Constant Brightness Mode) |
| Resolution | WUXGA (1920x1200), 16:10 |
| Contrast Ratio | 2,500,000:1 (Dynamic), 500:1 (Native) |
| Picture Modes | Dynamic, Presentation, sRGB, Cinema, Blackboard, DICOM SIM, Multi-Projection |
| Light Source Life | 20,000 hours (Normal/Quiet), 30,000 hours (Extended) |
| Interactivity | HDBaseT, 4K input, edge blending, Quick Corner, arc correction, lens shift, 360° installation, Miracast, built-in media player, Epson Creative Projection App |
| Warranty | 3 years (projector), 3 years or 12,000 hours (light source, varies by region) |
Epson EB-L730U WUXGA 3LCD Laser Projector: All Specifications
| Projection System | 3LCD, 0.67" panel with C2Fine™ (D10) |
|---|---|
| Brightness | 7,000 lumens (color and white), ~4,900 lumens (Constant Brightness Mode) |
| Resolution | WUXGA (1920x1200), 2,304,000 pixels |
| Supported Resolution | VGA (640x480) to 4K UHD (3840x2160, input) |
| Contrast Ratio | 2,500,000:1 (Dynamic), 500:1 (Native) |
| Color Processing | 10-bit, up to 1.07 billion colors |
| Light Source | Laser Diode with inorganic phosphor wheel |
| Light Source Life | 20,000 hours (Normal/Quiet), 30,000 hours (Extended) |
| Throw Ratio | 1.35–2.2:1 |
| Zoom Ratio | 1.6x (optical) |
| Lens | F=1.5–1.7, f=20–31.8 mm, manual zoom/focus |
| Lens Shift | Manual, ±50% vertical, ±20% horizontal |
| Projection Size | 50"–500" |
| Projection Distance | 2.33–3.78 m (80" screen), 3.49–5.66 m (120" screen) |

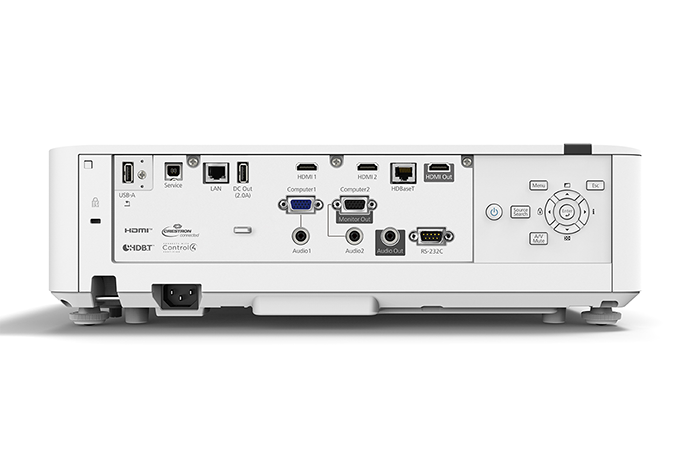

| Connectivity | HDBaseT, 2x HDMI (HDCP 2.3), HDMI out, VGA in (2x), VGA out, USB-A (2x, playback), USB-B, RS-232C, RJ-45, 5GHz Wi-Fi, Miracast, stereo mini jack in (2x), stereo mini jack out |
| Audio | 10W mono speaker |
| Noise Level | 36 dB (Normal), 27 dB (Quiet/Extended) |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20%–80% (operation), 10%–90% (storage) |
| Dimensions (WxDxH) | 440 x 304 x 122 mm (excluding feet) |
| Weight | 8.5 kg |
| Security | Kensington lock, control panel lock, security cable hole, wireless LAN security, password protection |
| Certifications | CE, FCC, RoHS |
| Warranty | 3 years (projector), 3 years or 12,000 hours (light source, varies by region) |
| Package Contents | Projector, power cable, remote with batteries, cable cover, user guide, warranty documents |
