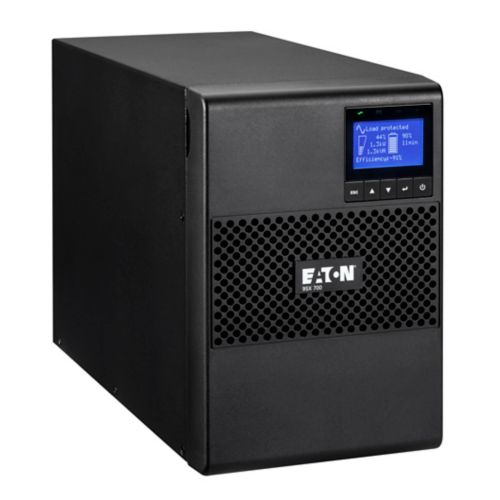

9S-UPS | Eaton 9S-UPS
- Model: Eaton 9SX UPS
- Capacity: 700–11000 VA 630–10000 W
- Input: IEC C14 C20 or hardwired 184–276 V
- Outputs: 6–8 IEC C13 C19 or NEMA 5-15R 5-20R L6-30R
- Battery: VRLA hot-swappable optional lithium-ion
- Connectivity: USB serial optional Gigabit Network Card-MS
- Dimensions: 252–438 x 86–160 x 439–706 mm
- Weight: 9.9–68.2 kg
9S-UPS | Eaton 9S-UPS
Power and Performance
The Eaton 9SX UPS offers 700–11,000 VA (630–10,000 W, 0.9–1.0 power factor), ideal for servers, network closets, and industrial automation. Its double-conversion topology ensures zero transfer time and clean power. Runtime is approximately 5–15 min at 70% load (model-dependent), extendable with EBMs. Efficiency reaches 95% in online mode, reducing energy costs. Users praise its reliability and 28% more wattage than traditional UPSs but note high initial costs. Perfect for mission-critical IT and edge deployments.
Connectivity and Protection
It features 6–8 IEC C13/C19 or NEMA outlets (model-dependent) with surge protection (IEC 61643-11). USB, serial, and optional Gigabit Network Card-MS (UL/IEC cybersecurity-compliant) enable remote monitoring via Eaton Intelligent Power Manager. Load segment control supports prioritized shutdowns. Input power factor is 0.99 with
Design and Features
Weighing 9.9–68.2 kg, it supports tower or rack/tower (2U–3U) formats (e.g., 438 x 86 x 608 mm for 3000 VA). Features include a graphical LCD (7 languages), hot-swappable VRLA batteries with ABM technology (extends life ~50%), and internal bypass. Optional lithium-ion batteries offer longer lifespan. Users like the compact design (~6 kW/sq.ft.) but note rack kits are model-specific. Ideal for network closets and harsh environments.
Eaton 9SX UPS: All Features
| Capacity | 700–11000 VA 630–10000 W |
|---|---|
| Topology | Double-conversion online |
| Input | IEC C14 C20 or hardwired 184–276 V |
| Outputs | 6–8 IEC C13 C19 or NEMA 5-15R 5-20R L6-30R model-dependent |
| Battery | VRLA hot-swappable optional lithium-ion |
| Connectivity | USB serial relay optional Gigabit Network Card-MS |
| Features | LCD display ABM HotSync surge protection load segment control internal bypass |
| Warranty | 3 years (extendable with service plans) |
Eaton 9SX UPS: All Specifications
| Model | Eaton 9SX UPS (700 1000 1500 2000 3000 5k 6k 8k 11k) |
|---|---|
| Catalog Numbers | 9SX700 9SX1000 9SX1500 9SX2000 9SX3000 9SX5K 9SX6K 9SX8K 9SX11K |
| Capacity | 700 VA 630 W 1000 VA 900 W 1500 VA 1350 W 2000 VA 1800 W 3000 VA 2700 W 5000 VA 4500 W 6000 VA 5400 W 8000 VA 7200 W 11000 VA 10000 W |
| Power Factor | 0.9 (1.0 for 5k–11k VA) |
| Topology | Double-conversion online |
| Input | 700–3000 VA: IEC C14 C20 208–240 V; 5k–11k VA: hardwired 208–240 V 50 60 Hz |
| Input Power Factor | 0.99 <5% ITHD |
| Outputs | 700–1000 VA: (6) IEC C13; 1500–3000 VA: (8) C13 (1) C19; 5k–6k: (6) 5-20R (2) L6-30R or hardwired; 8k–11k: (3) L6-30R or hardwired |
| Battery | VRLA 12 V 7–9 Ah hot-swappable optional lithium-ion |
| Battery Management | ABM with 3-stage charging automatic battery test |
| Runtime | Approximately 5–15 min at 70% load (model-dependent extendable with EBMs) |
| Extended Battery Capability | Up to 4 EBMs |
| Connectivity | USB serial relay optional Gigabit Network Card-MS |
| Surge Protection | IEC 61643-11 compliant |
| Display | Graphical LCD 7 languages adjustable position |
| Efficiency | Up to 95% online mode |
| Audible Noise | <45 dB (700–3000 VA) <50 dB (5k–11k VA) |
| Dimensions | 700–1000 VA: 252 x 160 x 439 mm; 1500–3000 VA: 438 x 86 x 608 mm; 5k–11k VA: 438 x 130 x 706 mm |
| Weight | 9.9–68.2 kg (model-dependent) |
| Certifications | IEC EN 62040-1 IEC EN 62040-2 CE UL Energy Star |
| Warranty | 3 years (extendable with service plans) |
| Accessories | EBMs rack kits maintenance bypass |
| Package Contents | UPS USB serial cables rack kit (RT models) user manual software CD |
