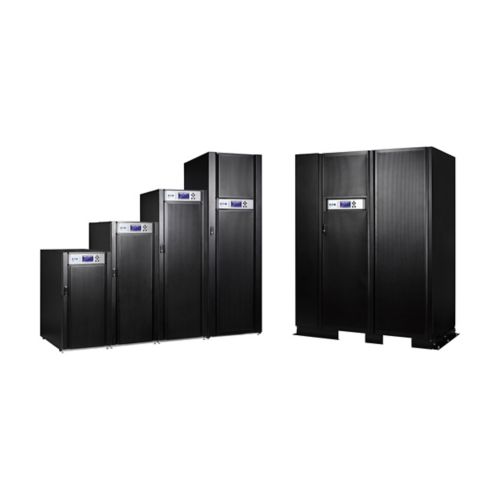

93E| Eaton 93E UPS

Name: 93E| Eaton 93E UPS
Brand: Eaton
SKU: 12017
Availability: InStock
Rating: 4 (1 reviews)

Model: Eaton 93E UPS
Capacity: 20–60 kVA 18–54 kW (standard) 80–500 kVA (HE)
Input: 208 220 380 400 415 V 3-phase
Outputs: Hardwired (configurable to IEC NEMA)
Battery: VRLA 12 V 9 Ah hot-swappable
Connectivity: USB serial optional Gigabit Network Card-MS
Dimensions: 600–1000 x 800–1000 x 1880 mm
Weight: 72–877 kg

Description
Reviews (1)

93E| Eaton 93E UPS

Power and Performance

The Eaton 93E UPS offers 20–60 kVA (18–54 kW, 0.9 power factor) for standard models and 80–500 kVA for HE models, ideal for data centers and IT infrastructure. Its double-conversion topology ensures zero transfer time and clean power. Runtime is up to 21 min with internal batteries, extendable via EBCs. Efficiency reaches 98.5% (standard) or 99% (HE) in high-efficiency mode, reducing costs. Hot Sync parallels up to 4–6 units for scalability. Users praise reliability but note high costs.

Connectivity and Protection

It features hardwired outputs (configurable to IEC/NEMA) with surge protection (IEC 61643-11). Connectivity includes USB, serial, and optional Gigabit Network Card-MS for remote monitoring via Brightlayer Data Centers suite. The internal back-feed contactor simplifies installation. Input power factor of 0.99 and 5% ITHD ensure generator compatibility. Users value virtualization integration but note optional cards add cost. Ideal for critical IT systems.

Design and Features

Weighing 72–877 kg, the transformer-free cabinet (600 x 800 x 1880 mm for 20–60 kVA) occupies up to 35% less floor space than competitors. Features include a detachable maintenance bypass (MTTR 30 min), ABM technology (extends battery life ~50%), and a large LCD. Internal wheels and angled connections ease installation. Users like the compact design but note weight challenges for smaller spaces. Ideal for space-constrained data centers.

Eaton 93E UPS: All Features

Capacity	20–60 kVA 18–54 kW (standard) 80–500 kVA (HE)
Topology	Double-conversion online transformer-free
Input	208 220 380 400 415 V 3-phase
Outputs	Hardwired (configurable to IEC NEMA)
Battery	VRLA 12 V 9 Ah hot-swappable
Connectivity	USB serial optional Gigabit Network Card-MS
Features	LCD display Hot Sync ABM internal bypass surge protection back-feed contactor
Warranty	1 year (extendable with service plans)

Eaton 93E UPS: All Specifications

Model	Eaton 93E UPS (20 30 40 60 kVA) 93E-HE (80 100 120 160 200 250 300 400 500 kVA)
Catalog Numbers	93E-20 93E-30 93E-40 93E-60 93E-80-HE 93E-100-HE 93E-120-HE 93E-160-HE 93E-200-HE 93E-250-HE 93E-300-HE 93E-400-HE 93E-500-HE
Capacity	20 kVA 18 kW 30 kVA 27 kW 40 kVA 36 kW 60 kVA 54 kW 80–500 kVA (HE models)
Power Factor	0.9 (1.0 for HE models)
Topology	Double-conversion online transformer-free
Input	208 220 380 400 415 V 3-phase 45–65 Hz
Input Power Factor	0.99 <5% ITHD
Outputs	Hardwired (configurable to IEC NEMA 208 220 380 400 415 V)
Battery	VRLA 12 V 9 Ah hot-swappable
Battery Management	ABM with 3-stage charging automatic battery test
Runtime	Up to 21 min at full load (extendable with EBCs)
Extended Battery Capability	External Battery Cabinets (EBCs up to 4)
Connectivity	USB serial relay optional Gigabit Network Card-MS
Surge Protection	IEC 61643-11 compliant
Display	Large LCD graphical display
Efficiency	Up to 98.5% (standard) 99% (HE in high-efficiency mode)
Audible Noise	60 dB at 1 m
Dimensions	20–60 kVA: 600 x 800 x 1880 mm; 80–200 kVA: 600 x 1000 x 1880 mm; 250–500 kVA: larger cabinets
Weight	72–877 kg (model-dependent)
Protection Class	IP20
Certifications	IEC EN 62040-1 IEC EN 62040-2 CE UL Energy Star
Warranty	1 year (extendable with service plans)
Software	Brightlayer Data Centers suite Intelligent Power Manager
Accessories	EBCs maintenance bypass sidecar rail kits
Package Contents	UPS USB serial cables user manual software CD
