AS5304T | NIMBUSTOR 4 AS5304T

Name: AS5304T | NIMBUSTOR 4 AS5304T
Brand: Asustor
SKU: 12125
Availability: InStock
Rating: 4 (1 reviews)

Model: AS5304T
Processor: Intel Celeron J4105 Quad-Core 1.5 GHz (burst up to 2.5 GHz)
Memory: 4GB DDR4 SO-DIMM (expandable to 8GB)
Storage: 4 x 3.5"/2.5" SATA III bays
Network: 2 x 2.5GbE
Dimensions: 170 x 174 x 230 mm
Weight: 2.2 kg (diskless)

Description
Reviews (1)

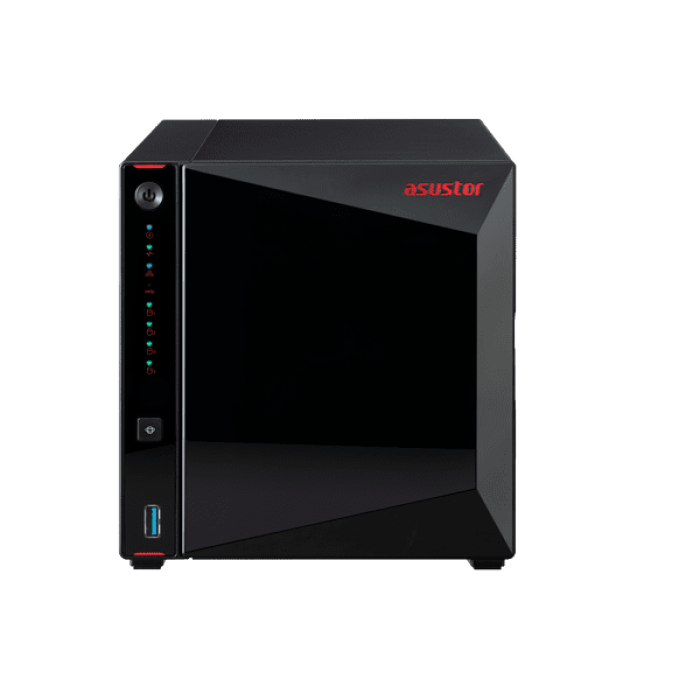

NIMBUSTOR 4 AS5304T

High-Speed Performance for Content Creators

The ASUSTOR Nimbustor 4 (AS5304T) is a 4-bay NAS powered by an Intel Celeron J4105 Quad-Core 1.5 GHz processor (burst up to 2.5 GHz) with 4GB DDR4 RAM, expandable to 8GB. It delivers sequential read/write speeds up to 98/96 MB/s, ideal for live streamers and content creators. Dual 2.5GbE ports with Link Aggregation support up to 5 Gbps, enhancing network performance for 4K HDR streaming and large file transfers.

Multimedia and Storage Versatility

Featuring four 3.5"/2.5" SATA III hot-swappable bays, the AS5304T supports up to 72TB (4x18TB) internally and 216TB with three AS6004U expansion units. It includes an HDMI 2.0a port with 10-bit 4K and VP9 decoding for direct media playback. With RAID 0, 1, 5, 6, 10, JBOD, and Btrfs snapshots (up to 256), it ensures flexible storage and data protection.

Advanced Software and Connectivity

Running ADM 3.4 or later, the AS5304T offers Takeasy for YouTube/Twitch video archiving, iSCSI for game storage, and over 200 apps via App Central, including Plex and surveillance tools. Features like EZconnect.to, EZ Sync, and cloud backups (Amazon S3, Dropbox) ensure seamless access. With AES-NI encryption and a 3-year warranty, it’s secure and reliable for 24/7 operation.

ASUSTOR Nimbustor 4 AS5304T: All Features

Processor	Intel Celeron J4105 Quad-Core 1.5 GHz (burst up to 2.5 GHz)
Memory	4GB DDR4 SO-DIMM (expandable to 8GB)
Storage	4 x 3.5"/2.5" SATA III bays, hot-swappable
Network	2 x 2.5GbE (supports Link Aggregation, up to 5 Gbps)
Ports	3 x USB 3.2 Gen 1 Type-A, 1 x HDMI 2.0a
RAID Support	RAID 0, 1, 5, 6, 10, JBOD, Single
Software	ADM 3.4+, Takeasy, EZconnect.to, EZ Sync, Snapshot Center, Plex
Security	AES-NI encryption, Btrfs snapshots (256), ADM Defender, Avast Antivirus
Compatibility	Windows XP+, macOS 10.6+, Linux, UNIX, FreeBSD

ASUSTOR Nimbustor 4 AS5304T: All Specifications

Model	AS5304T
Processor	Intel Celeron J4105 Quad-Core 1.5 GHz (burst up to 2.5 GHz), 4MB cache
Memory	4GB DDR4-2400 SO-DIMM (expandable to 8GB, 2 slots)
Drive Bays	4 x 3.5"/2.5" SATA III, hot-swappable
Max Capacity	72TB (4 x 18TB drives, varies by RAID); 216TB with three AS6004U units
RAID Support	RAID 0, 1, 5, 6, 10, JBOD, Single
File System	Internal: Btrfs, EXT4; External: EXT4, EXT3, FAT32, NTFS, HFS+, exFAT

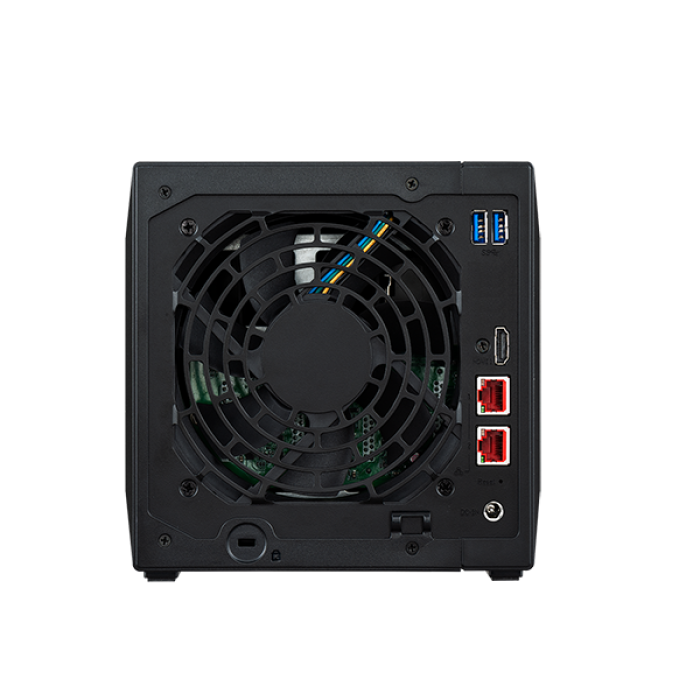

Network	2 x 2.5GbE RJ45 (supports Link Aggregation, Wake on LAN)
Ports	3 x USB 3.2 Gen 1 Type-A (5 Gbps), 1 x HDMI 2.0a (4K HDR)
Performance	Up to 98 MB/s read, 96 MB/s write (RAID 5, tested with 4.9GB folder)
Encryption	AES-NI 256-bit for folders and MyArchive
Operating System	ADM 3.4 or later
Power Supply	External 90W, 100-240V AC, 50/60 Hz
Power Consumption	~27W (operation), ~12.6W (disk hibernation)
Cooling	1 x 120mm fan
Operating Temperature	0°C to 40°C
Non-Operating Temperature	-20°C to 70°C
Noise Level	~18.6 dB(A) (HDD idle)
Dimensions (HxWxD)	170 x 174 x 230 mm
Weight	2.2 kg (diskless)
System Compatibility	Windows XP+, macOS 10.6+, Linux, UNIX, FreeBSD
Certifications	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
Warranty	3-year limited
Package Contents	NAS, AC adapter, power cord, 2 x RJ45 cables, HDD screws, quick start guide
